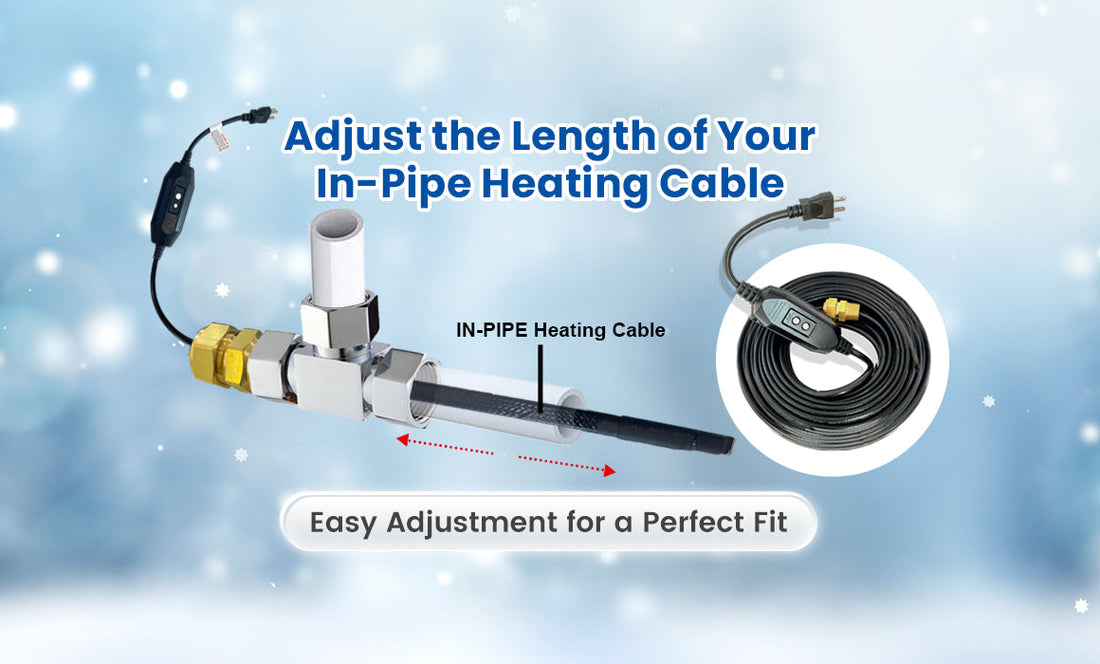

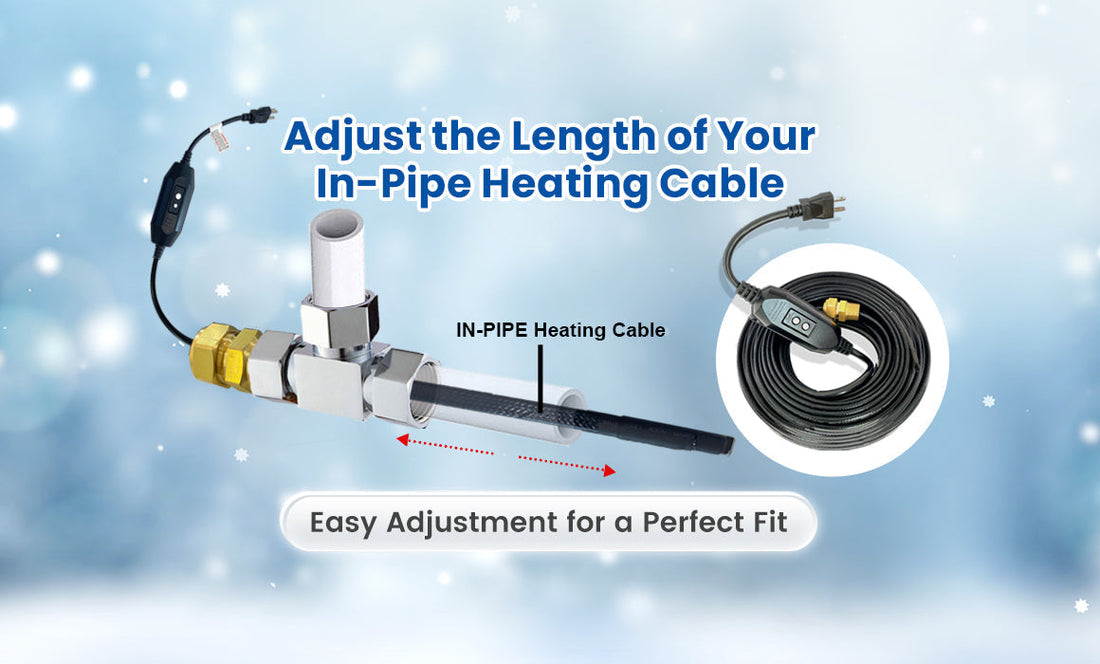

If your in-pipe heating cable is too long during installation, do not cut it. Position only the required length inside the pipe by moving the sealing grommet, then leave the extra heating cable outside the pipe for proper securing and insulation.
Can You Adjust the Installed Cable Length?
Yes. The cable itself is not cut or shortened. Instead, you adjust how much of the heating cable enters the pipe and leave the extra section outside.
The sealing grommet inside the brass compression fitting can be repositioned along the cable. This lets you match the inserted cable length to the pipe section during installation.
Do Not Cut the Heating Cable
Never cut, trim, or splice the heating cable. Cutting it can damage the heating circuit and its waterproof end sealing. The adjustment described here only changes how much cable is installed inside the pipe.
Tools You May Need
- An adjustable wrench, pipe wrench, or channel-lock pliers
- PTFE thread-seal tape, if required for the threaded connection
- Nylon zip ties
- Suitable insulation tape for the reserved cable section
How to Leave Extra In-Pipe Heating Cable Outside the Pipe
Loosen the Compression Nut
Before installation, make sure the heating cable is disconnected from electrical power. Use a suitable wrench or channel-lock pliers to loosen the brass compression nut.
The nut compresses the sealing grommet around the cable, helping secure the cable and seal the pipe-entry connection.
Position the Sealing Grommet
Determine how much heating cable needs to enter the pipe. Slide the sealing grommet along the cable until the required section will remain inside the pipe and the extra section will remain outside.
Move the grommet carefully. Do not scratch, twist, crush, or otherwise damage the cable jacket.
Retighten the Compression Nut
Once the required cable length is positioned inside the pipe, hand-tighten the compression nut. Then use the appropriate wrench to tighten the connection securely.
If the fitting instructions require PTFE tape, apply it to the threaded connection before final assembly.
Secure the Extra Cable Outside the Pipe
Arrange the reserved heating cable outside the pipe in loose loops and secure it neatly with nylon zip ties. Do not kink, sharply bend, tightly bundle, cross, or overlap the cable.
The reserved section remains part of the active heating cable and can become hot during operation. Cover it with suitable insulation tape as directed for the product, and position it where it will not be damaged or touched accidentally.
Important Distinction
This installation method adjusts the length placed inside the pipe. It does not reduce the heating cable's total manufactured length. The extra section remains connected and is reserved outside the pipe.
Check the Connection Before Operation
After positioning the cable and tightening the fitting:
- Confirm that the cable is held securely by the compression fitting.
- Inspect the cable jacket, end seal, grommet, and fitting for damage.
- Pressure-test the plumbing connection and check for water leakage.
- Make sure the reserved cable outside the pipe is secured without crossing or overlapping.
- Complete all remaining installation steps before connecting electrical power.
For pipe clearance, cable insertion, plumbing, and electrical checks, follow the MAXKOSKO in-pipe heating cable installation guide.
Key Takeaways
- Do not cut, trim, or splice an in-pipe heating cable.
- Move the sealing grommet to control how much cable enters the pipe.
- Leave the extra heating cable outside the pipe.
- Secure the reserved section in loose loops without crossing or overlapping it.
- Inspect and pressure-test the connection before energizing the cable.
Planning an In-Pipe Heating Cable Installation?
Choose a cable that covers the complete freeze-prone pipe section. If the cable is longer than the section inside the pipe, leave the extra portion outside using the installation method described above. Never cut the heating cable to make it fit.
Frequently Asked Questions
Can I cut an in-pipe heating cable if it is too long?
No. Do not cut, trim, or splice the heating cable. Move the sealing grommet to position the required length inside the pipe and leave the extra cable outside.
Does moving the grommet shorten the heating cable?
No. The cable remains its original manufactured length. Moving the grommet only changes how much cable is placed inside the pipe during installation.
What should I do with the extra cable outside the pipe?
Arrange it in loose loops, secure it with nylon zip ties, and insulate it as directed. Do not kink, tightly bundle, cross, or overlap the heating cable.
Can the cable section outside the pipe still produce heat?
Yes. The reserved section remains part of the active heating cable and can become hot. Secure and insulate it properly, and keep it protected from accidental contact or damage.
