Hey there, putting in your in-pipe heating cable? A little prep work and careful hands are your best friends for making sure everything runs safely and like a champ. Here’s the lowdown on what to do before and during the install.
Before Installation:
1. Measure Your Pipe Run
First things first, get an accurate measurement of the total pipe length where the cable needs to go. This tells you exactly how much cable you'll need.
Pro tip: If you can't find a perfect match, always go for a cable that's a tad longer. It gives you some wiggle room to work with.
What to do if your cable's too long: Check this link.
2. Scout for Sharp Bends
Heads up: This cable is not suitable for tight, sharp bends, think 90-degree or 45-degree elbows. If your pipe setup has those, you'll want to swap those sections out for nice, smooth, sweeping curves. This lets the cable slide through without any stress or potential damage.
3. Confirm Your Pipe's Inner Diameter
Double-check that the inside diameter (ID) of your pipe, including all fittings, is consistently greater than 3/4 inch. This specific cable model is engineered for pipes and fittings with an ID larger than that. If you've got anything smaller, it won't fit or work correctly.

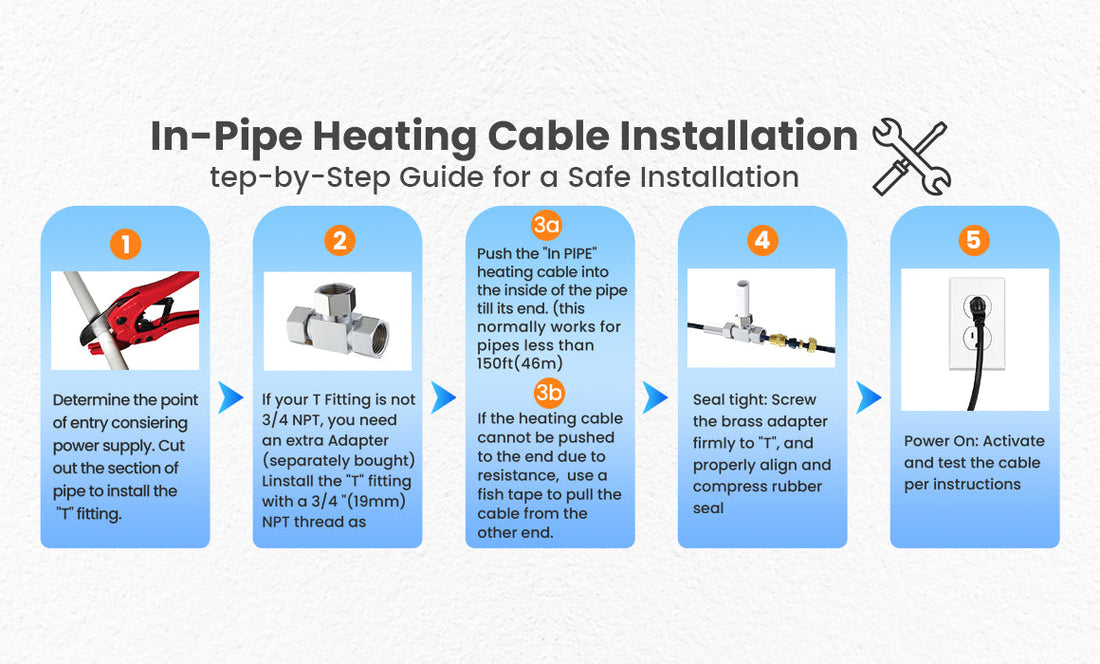

During the Installation Process:
1. Sort Out Adapters for Non-Standard Pipes
Got a pipe that isn't a standard 3/4" ID? You're going to need an adapter. This adapter will let the cable's brass fitting connect securely to a standard 3/4" port.
Quick note: The necessary T-fitting isn't part of the standard kit and needs to be bought separately.
2. Watch the Cable Jacket
Be super careful not to nick, puncture, or tear the cable's outer jacket while you're handling it. Any damage to that protective layer can mess with the cable's integrity and might even lead to leaks or a system failure down the line.
3. Techniques for Longer Pipe Runs
If you're dealing with a long stretch of pipe, here are a few tried-and-true methods:
Method 1 – The Fish Tape Pull
This is the go-to, most reliable method for long installations. You'll need a long fish tape (150 ft or more).
1. Feed the fish tape through the pipe from the destination end back to the start.
2. Attach the cable, then have a helper gently pull the tape from the far end while you carefully feed the cable in.
Method 2 – The Vacuum & Sponge Trick
Get a small, clean sponge and attach it firmly to the end of the cable. Then, using a wet/dry vacuum cleaner at the opposite end of the pipe, create suction to pull the sponge (and the cable) through.
Method 3 – Use a Water-Based Lube
A little lubrication can go a long way. Applying a non-toxic, potable water-based lubricant to the cable jacket significantly reduces friction and makes the whole insertion process much smoother.
Method 4 – The Cut-and-Splice (or Relay Feed)
If the cable is just too long to push through in one go, this method lets you tackle it in sections:
a. Push the heating cable as far as it comfortably goes.
b. Carefully cut the pipe at a convenient spot (extreme caution here to avoid cutting the cable!).
c. Thread the cable through a hose barb splicer and clamps.
d. Now, push the remaining length of the same cable further into the pipe from this new access point.
e. Once the cable has reached its final destination, tighten down the clamps on the splicer to get your pipe sealed back up.
Follow Installation Instructions
Refer to detailed installation guides to ensure proper placement and secure connections.
By following these guidelines, you’ll ensure that your in-pipe heating cable is installed safely, protecting your pipes from freezing and providing reliable performance.
