Electric floor heating can be installed over a suitable plywood subfloor, but the floor assembly must be stable and compatible. This guide explains when an uncoupling membrane helps, what it cannot fix, and what to check before covering the heating cable with tile.
Can You Install Electric Floor Heating Over Plywood?
Yes, when the plywood subfloor is structurally sound and the heating system, underlayment, mortar and finished flooring are all suitable for the application.
The important point is that the heating cable is only one layer of the floor. A successful tile installation also depends on the condition of the plywood and how movement between the wood subfloor and tile is managed.
An Uncoupling Membrane Does Not Repair a Bad Subfloor
If the plywood is loose, excessively flexible, damaged, uneven or affected by moisture, correct the underlying problem first. Do not use an uncoupling membrane to compensate for an unsuitable structural substrate.
Why Plywood Needs More Attention Under Heated Tile
Plywood and tile behave differently as temperature, moisture and loading conditions change. Minor movement in the wood assembly can transfer stress into the tile and grout above it.
An uncoupling membrane is designed to help reduce that stress transfer while also providing a suitable layer for the tile installation. A floor-heating membrane can also provide a defined path for routing the heating cable at consistent spacing.

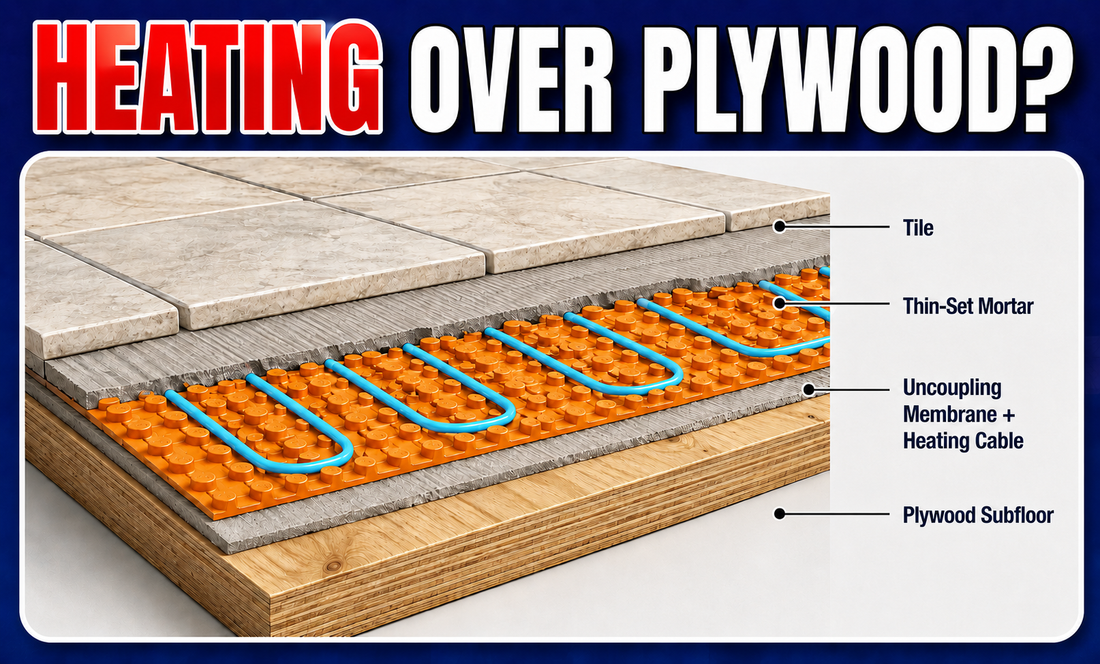

A typical heated tile assembly may look like this:
Prepared Plywood Subfloor
The plywood should be stable, flat, clean, dry and suitable for the selected flooring system.
Compatible Uncoupling Membrane
The membrane is installed according to its instructions and provides the cable-routing and uncoupling layer.
Electric Floor Heating Cable
The cable is routed at the approved spacing without crossing, overlapping or modifying the heating section.
Mortar and Tile
The cable is fully embedded using materials compatible with the membrane, heating system and selected tile.
Do You Always Need an Uncoupling Membrane?
Not every electric floor heating installation uses one. Some heating cables can be secured with an approved cable guide and embedded using an appropriate floor assembly instead.
| Installation Method | When It Makes Sense | Main Consideration |
|---|---|---|
| Floor-heating uncoupling membrane | You are installing tile and want an organized cable layout plus an uncoupling layer. | The membrane, mortar, cable and plywood substrate must all be compatible. |
| Approved cable guide | Your heating-cable instructions allow another approved method of securing the cable. | You still need a complete floor assembly suitable for plywood and the finished flooring. |
For tiled floors over plywood, a compatible floor-heating uncoupling membrane is often a practical option because it addresses both cable routing and the transition between the wood subfloor and rigid tile covering.
Before You Cover the Heating Cable
Once the tile is installed, accessing a damaged cable becomes much more difficult. A few checks during installation are therefore especially important.
- Confirm the actual heated area before selecting the cable size.
- Do not install heating cable beneath toilets, cabinets, vanities or other permanent fixtures unless specifically allowed by the system instructions.
- Do not cut, shorten, cross, overlap or splice the heating section.
- Install the floor sensor in the required position between cable runs without allowing it to touch the heating cable.
- Test and record heating-cable resistance at the required stages of installation.
- Check that the thermostat, supply voltage and electrical protection match the heating system.
If you need the electrical testing procedure, see our guide on testing a floor heating sensor and heating cable with a multimeter.
Do Not Turn the System On Too Early
Do not energize the floor heating cable simply to speed up mortar or tile curing. Follow the heating-system, mortar and flooring manufacturers' required curing periods before operating the system. Final electrical connections and required ground-fault protection should comply with the product instructions and applicable electrical requirements.
Key Takeaways
- Electric floor heating can be installed over a suitable plywood subfloor.
- The plywood must be stable and properly prepared before the heating system is installed.
- An uncoupling membrane can help manage minor stress transfer and organize heating-cable spacing.
- A membrane cannot correct a structurally weak, damaged or excessively flexible subfloor.
- Test the heating cable before, during and after installation before the floor becomes difficult to access.
Planning a Heated Tile Floor Over Plywood?
The MAXKOSKO Electric Floor Heating Cable is designed for custom floor layouts and can be installed with a compatible uncoupling membrane or approved cable guide.
For a tiled installation, the MAXKOSKO Uncoupling Membrane for Floor Warming provides a dedicated cable-routing layer while helping reduce stress transfer between the prepared subfloor and tile assembly.
Before ordering, measure only the area that will actually receive heat and confirm your plywood condition, system voltage, cable layout, thermostat and finished flooring requirements.
Frequently Asked Questions
Can electric floor heating go directly over plywood?
The heating system can be installed as part of an approved floor assembly over suitable plywood, but do not assume the heating cable should simply be laid loose on the plywood. Follow the cable instructions and use a compatible membrane, cable guide or other approved installation method.
Does an uncoupling membrane stop tile from cracking?
It can help reduce stress transfer caused by minor substrate movement, but it cannot guarantee that tile or grout will never crack and it does not repair an unstable subfloor.
Should I level the plywood before installing the heating membrane?
The substrate should meet the flatness and preparation requirements of the membrane, mortar and tile system before installation. Correct unacceptable substrate conditions before covering the plywood.
Should I test the floor heating cable before tiling?
Yes. Check and record the required resistance values before installation, during installation and again before or after the finished floor is completed as directed by the heating-system instructions.
