Double-Fleece Uncoupling Membrane for Tile Protection
MAXKOSKO Double-Fleece Uncoupling Membrane is designed for ceramic, porcelain, and stone tile installations where long-term crack prevention, waterproofing, and reliable bonding are required.

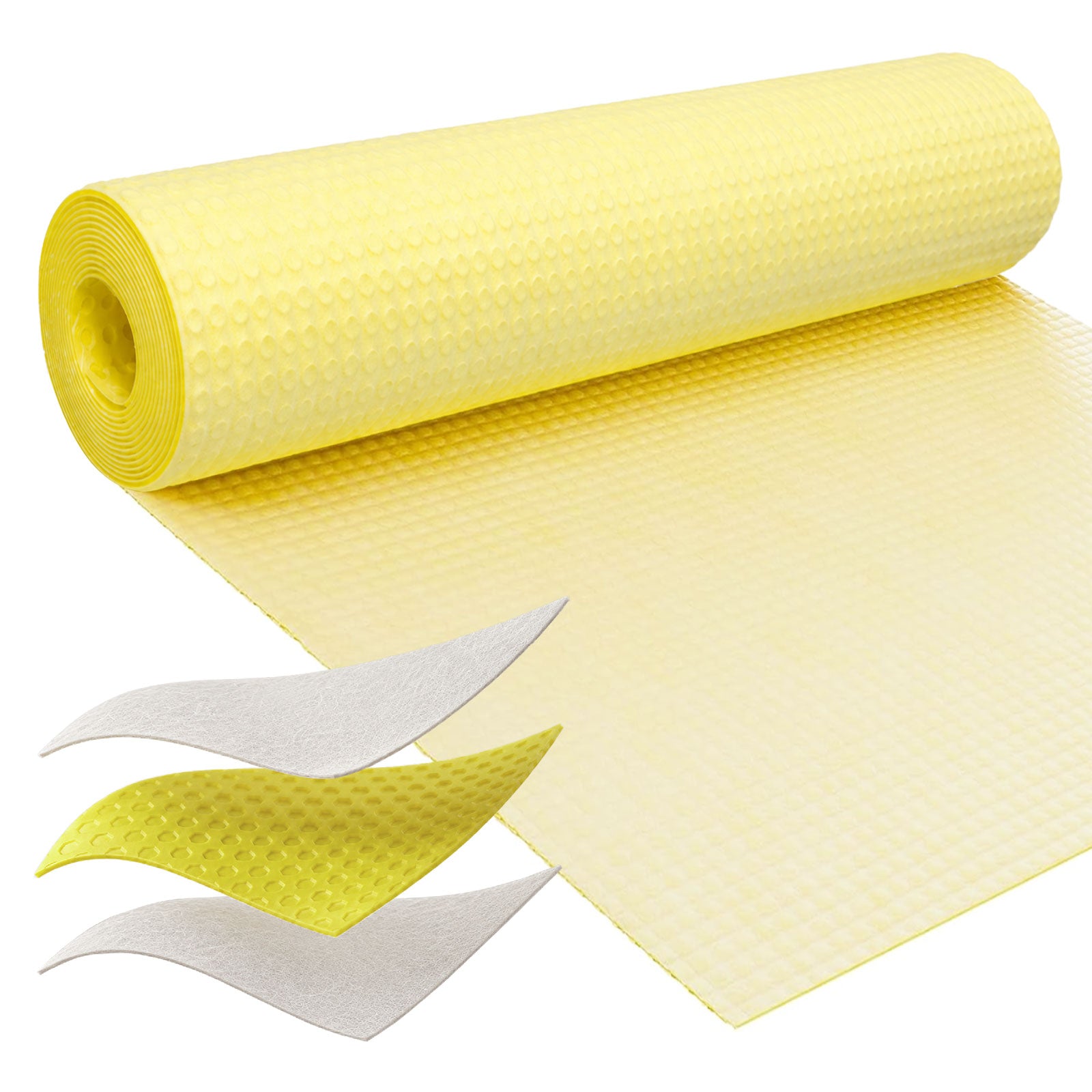

Featuring a three-layer structure with a waterproof PVC core and nonwoven fleece layers on both sides, this membrane helps reduce tile and grout cracking caused by movement between the substrate and tile covering.
Compared with a standard crack prevention underlayment mat, this upgraded design provides additional uncoupling protection, stronger bonding performance, and improved moisture management.
Looking for a simpler crack prevention solution? View MAXKOSKO Tile Crack Prevention Underlayment Mat

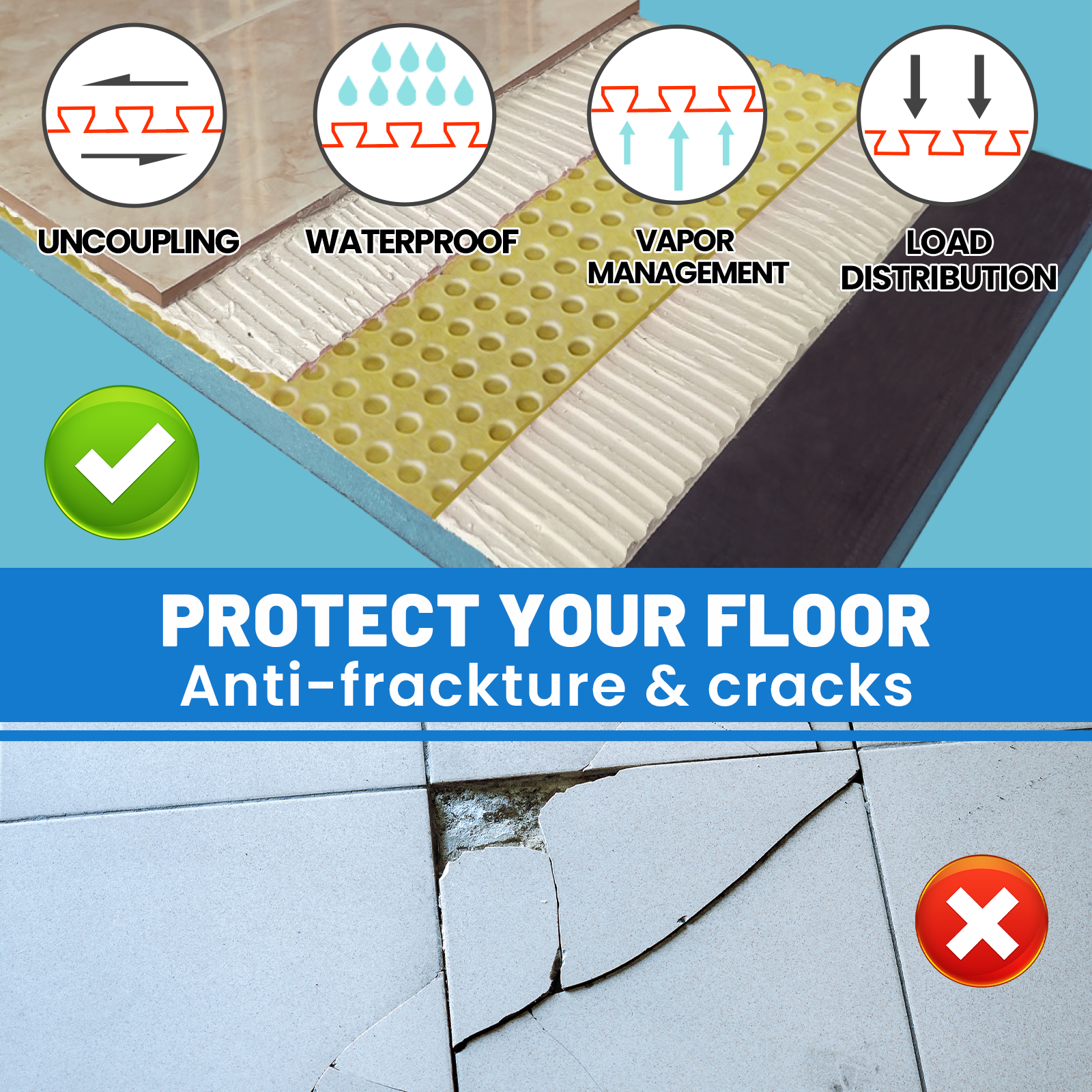

Uncoupling Protection
Helps absorb stresses caused by substrate movement, reducing the risk of tile and grout cracks.

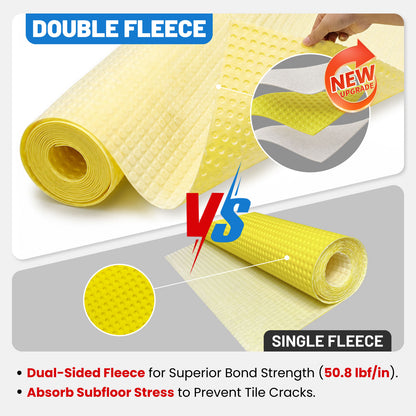

Double-Fleece Bonding
Nonwoven fleece layers provide strong mechanical bonding with thin-set mortar for secure tile installation.
Waterproof Core
The waterproof membrane layer helps protect moisture-sensitive substrates when properly installed and sealed.
Vapor Management
Integrated channels allow residual moisture vapor to escape and improve installation reliability.
Load Distribution
Mortar-filled cavities help distribute loads evenly and provide stable support beneath tile surfaces.
High Tensile Strength
Three-layer construction provides improved tear resistance and long-lasting durability.
Important Before Ordering
Before Installation
Compatible Applications: Designed for ceramic, porcelain, and natural stone tile installations.
Required Substrate: The substrate must be flat, stable, clean, and free from dust, grease, or loose materials.
Waterproofing Requirements: For waterproof installations, seams, corners, and transitions must be properly sealed.
Professional Installation: Always follow local building codes, tile manufacturer recommendations, and thin-set mortar instructions.
Applications
MAXKOSKO Uncoupling Membrane is suitable for tile projects requiring movement protection, waterproofing, and improved installation reliability.
- Residential bathroom, kitchen, and floor tile installations
- Commercial tile flooring applications
- Ceramic, porcelain, and natural stone tile systems
- Tile installations over concrete, plywood, OSB, and approved substrates
- Projects requiring additional crack prevention and moisture protection
Specifications
| Product Type |
Double-Fleece Uncoupling Membrane |
| Structure |

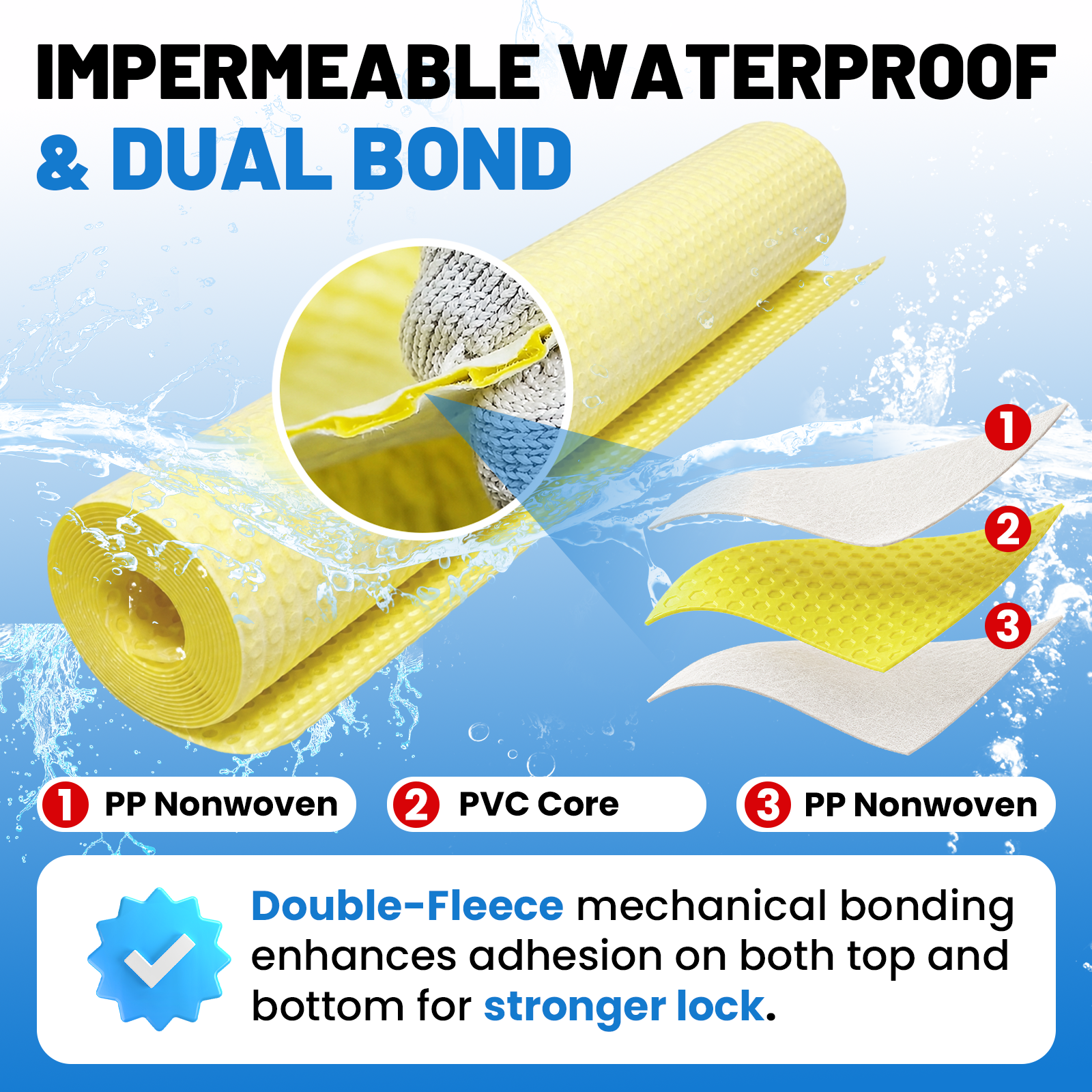

PP Nonwoven + PVC Core + PP Nonwoven |
| Main Functions |
Uncoupling, Waterproofing, Vapor Management, Load Distribution |
| Applications |
Ceramic Tile, Porcelain Tile, Natural Stone Tile Installations |
| Installation Temperature |
41°F to 95°F (5°C to 35°C) |
| Compatible Substrates |
Plywood, OSB, Concrete, Gypsum Underlayment, Radiant Heated Floors |

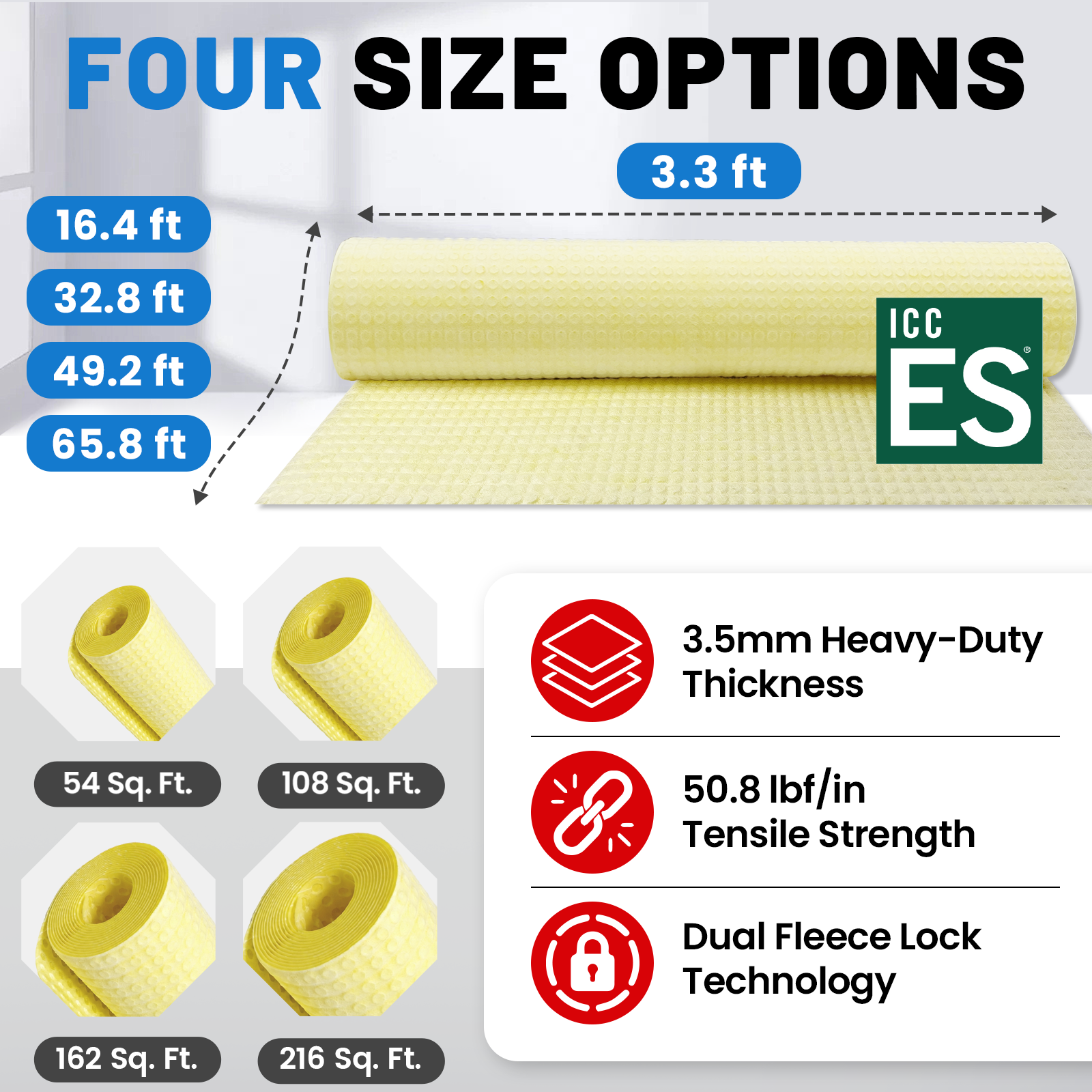

| Tensile Strength |
Up to 50.8 lbf/in (89 N/cm) |
Installation

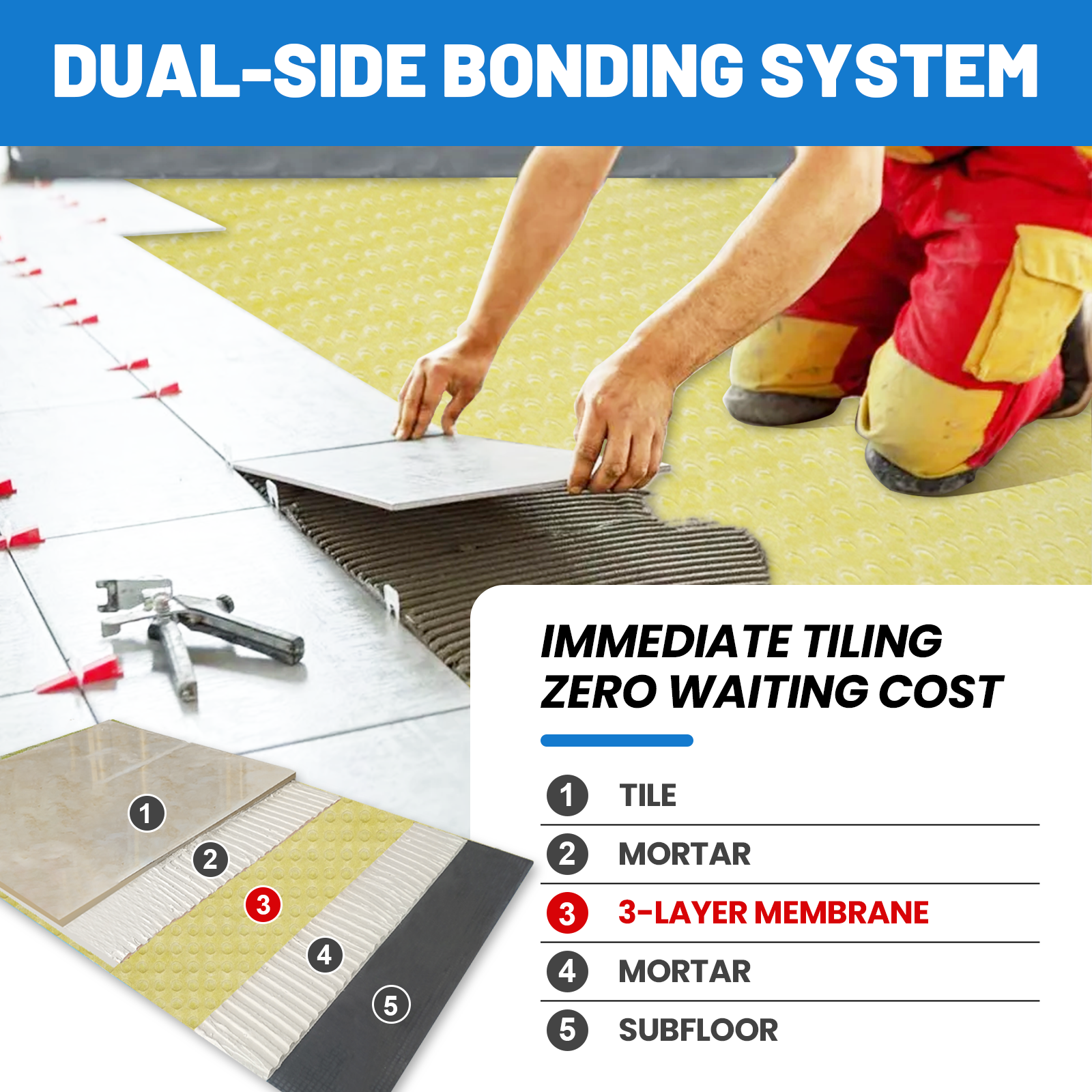

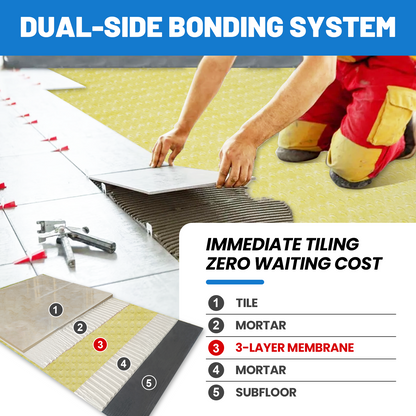

MAXKOSKO Uncoupling Membrane is installed between the substrate and tile covering using suitable thin-set mortar. Proper substrate preparation and installation procedures are essential for long-term performance.
Step 1: Prepare the Substrate
Clean and inspect the installation surface. The substrate should be flat, stable, and free of dust, grease, or loose materials.
Step 2: Apply Thin-Set Mortar
Spread suitable thin-set mortar evenly over the prepared substrate using an appropriate notched trowel.
Step 3: Install the Membrane
Place the membrane onto fresh mortar and press firmly to achieve full contact. Ensure proper alignment before tile installation.
Step 4: Install Tile
Apply thin-set mortar over the membrane and install ceramic, porcelain, or stone tiles according to tile manufacturer requirements.
Installation Notes

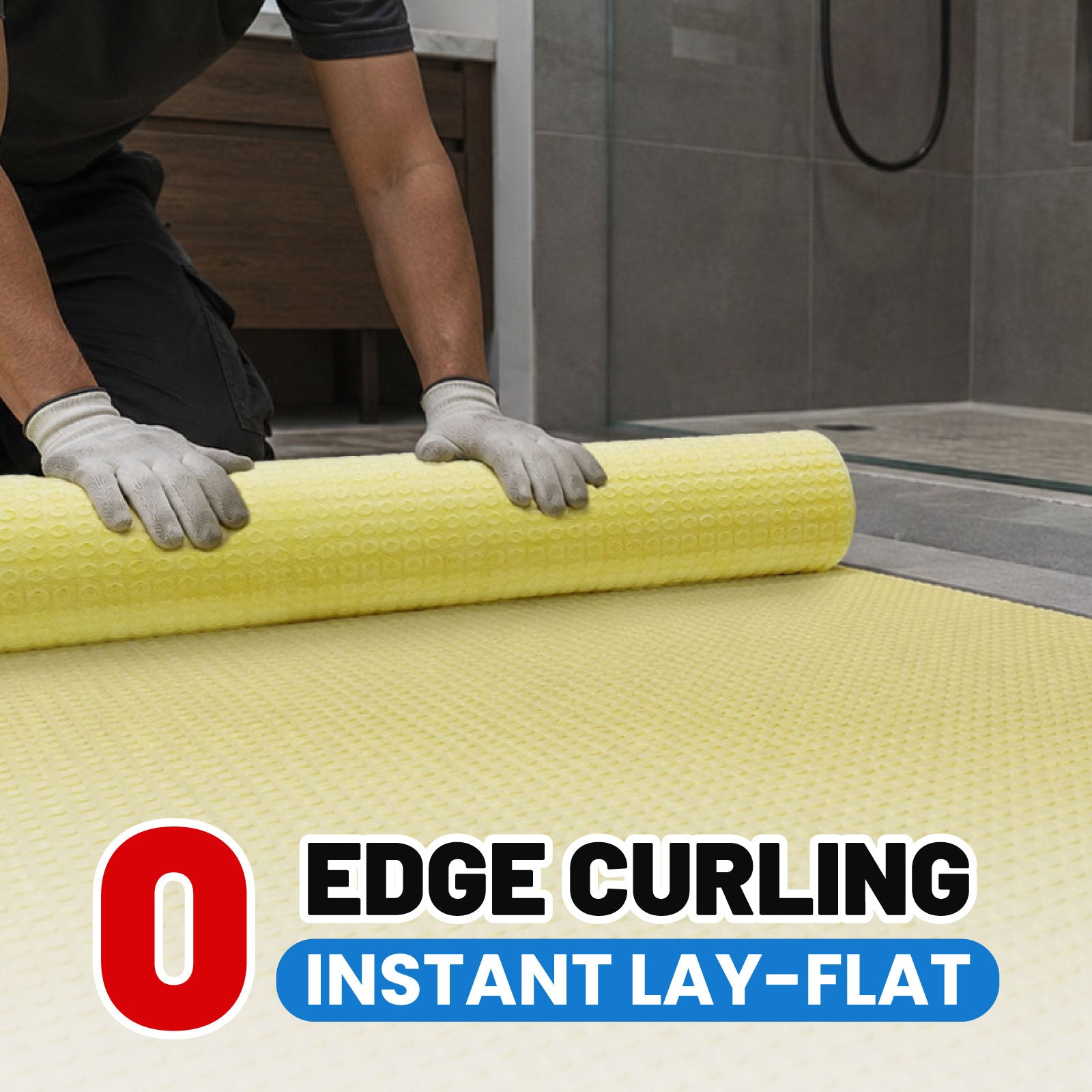

Reverse-Wound Design: The membrane can be unrolled directly onto the mortar bed without flipping or repositioning, helping improve installation efficiency.
Movement Joints: Required movement joints should be maintained at edges, transitions, and large tiled areas according to industry practices.
Installation Temperature: Recommended installation temperature range is 41°F to 95°F (5°C to 35°C).
Professional Installation: Always follow local building codes, tile manufacturer recommendations, and thin-set mortar manufacturer instructions.
Frequently Asked Questions
What is an uncoupling membrane used for?
An uncoupling membrane helps separate the tile layer from substrate movement. It reduces stress transfer between the substrate and tile covering, helping prevent tile and grout cracking.

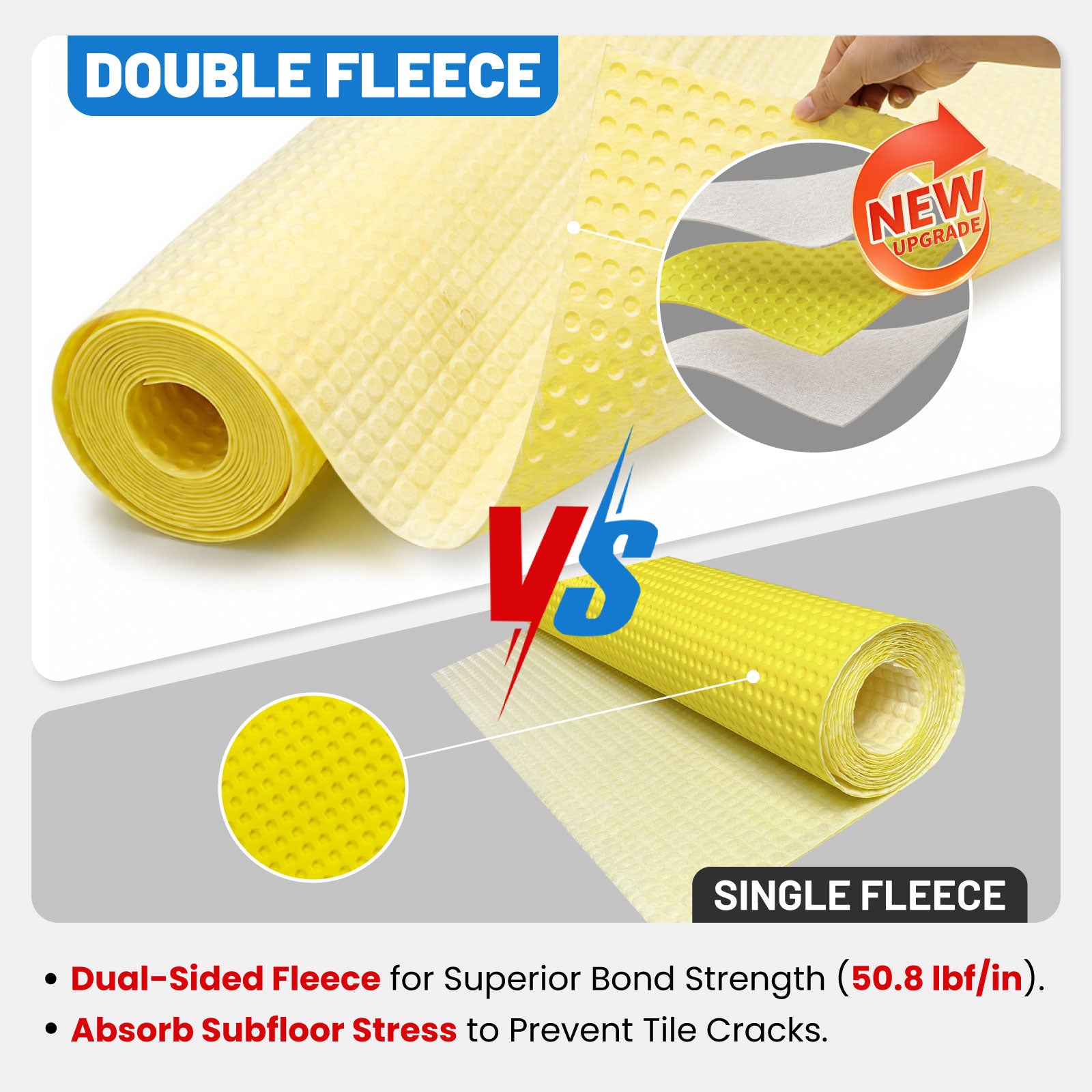

How is this different from the MAXKOSKO Crack Prevention Underlayment Mat?
The Double-Fleece Uncoupling Membrane is an upgraded solution featuring a three-layer structure with fleece bonding layers on both sides. Compared with the standard crack prevention mat, it provides additional uncoupling protection, waterproofing support, vapor management, and load distribution performance.
For basic crack prevention applications, you can also view our Tile Crack Prevention Underlayment Mat .
Can this membrane be used for waterproof tile installations?
Yes. The waterproof core helps provide moisture protection when seams, corners, and transitions are properly sealed according to installation requirements.
What types of tiles can be installed over this membrane?
It is designed for ceramic tile, porcelain tile, and natural stone tile installations when used with suitable thin-set mortar.
Can this membrane be installed over plywood or concrete floors?
Yes. It can be used over approved substrates including plywood, OSB, concrete, gypsum underlayment, and radiant heated floors when properly prepared.
Does this membrane replace proper substrate preparation?
No. The substrate must still be structurally sound, flat, and properly prepared before installation. The membrane helps manage movement but does not correct structural issues.
Guides & Resources
Need Help Choosing the Right Tile Protection Solution?
MAXKOSKO offers both standard crack prevention mats and upgraded uncoupling membrane solutions for different tile installation requirements.
Choose the right solution based on your project needs:
-
Standard Crack Prevention Underlayment Mat: A simple solution for helping reduce tile cracking in general applications.
View Product
-
Double-Fleece Uncoupling Membrane: An upgraded system providing uncoupling, waterproofing, vapor management, and stronger bonding performance.
For product selection assistance or project support, contact MAXKOSKO for recommendations.
