This guide explains why a pipe can remain frozen even when the heat tape is plugged in and its indicator light is on. You will learn how to distinguish between power, active heating and correct pipe coverage—and what to check before assuming the cable has failed.
Power, Heating and Pipe Coverage Are Different
When checking a pipe heating cable, separate the system into three questions:
Does the Cable Have Power?
The outlet is energized, the breaker and GFCI have not tripped, and the product’s power indicator—if equipped—shows that electricity is available.
Is the Cable Heating?
A built-in thermostat may keep the heating circuit off until the sensor detects a sufficiently low pipe temperature.
Is It Heating the Right Area?
The cable may be working normally while the actual ice blockage is located beyond the heated section.
Important
A power indicator does not always mean the heating cable is actively producing heat. Indicator functions vary by product, so check the instructions for your specific model.
Power Does Not Always Mean Active Heating
Many thermostatically controlled pipe heating cables do not heat continuously. The cable can remain connected to power while its thermostat keeps the heating circuit off because the sensed temperature is above the activation range.
This means a power light may simply confirm that electricity is available. Some products use separate indicators for electrical power and active heating, while others use only one power indicator.
Thermostat Location Affects Activation
If the thermostat senses a warmer location than the pipe section at risk, the cable may not activate when expected. This can happen when the thermostat is:
- Too close to a heated indoor area
- Away from the coldest section of pipe
- Influenced by nearby warm air or sunlight
- Installed differently from the product instructions
Install the thermostat exactly as directed for your heating cable. Do not move, modify or bypass it in a way that conflicts with the manufacturer’s instructions.

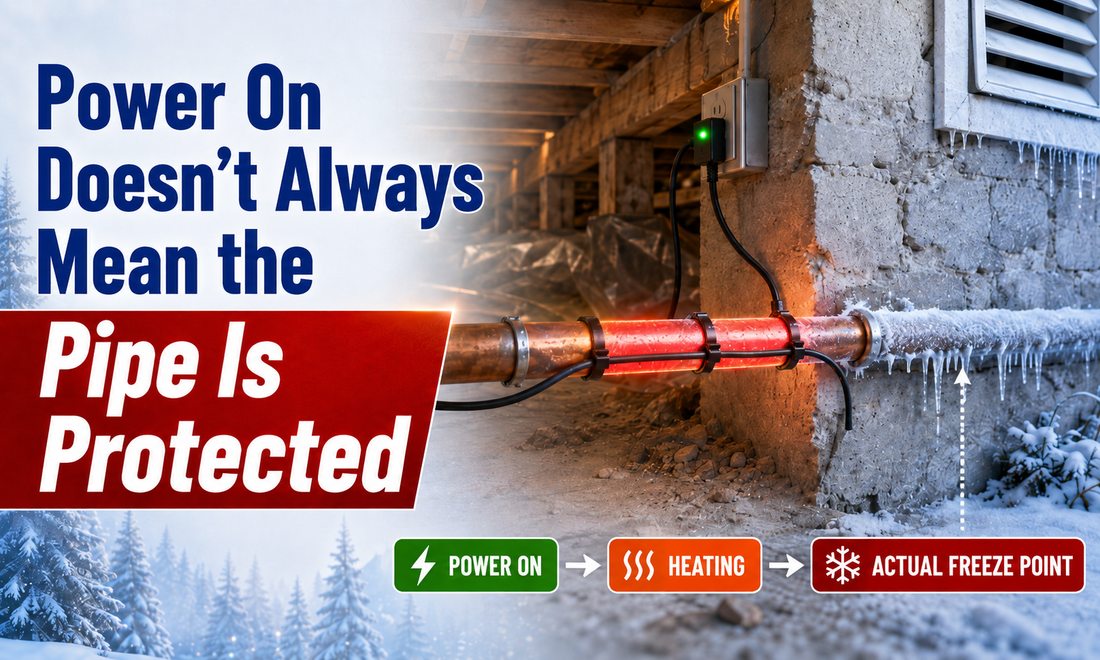

A Warm Cable Can Still Miss the Freeze Point
Suppose the cable has power, the thermostat has activated and the cable feels warm—but water still does not flow. The heating cable may be working correctly while heating the wrong section of plumbing.
For example, a 12-foot cable may protect an exposed crawl-space pipe while the actual ice blockage sits farther along the line inside an exterior wall.
Common hidden freeze points include:
- Past the end of the heating cable
- At a valve, elbow or fitting
- Inside an exterior wall
- At a foundation penetration
- Where an underground pipe becomes exposed
- Farther upstream than expected
There may also be more than one frozen section. A pipe can pass through a crawl space, exterior wall, garage and other unheated areas before returning to conditioned space. Protecting one section will not restore water flow if another ice blockage remains.
Check the System in This Order
Instead of beginning with “Is the heat tape broken?”, inspect the complete system step by step.
Confirm the Power Supply
Check the outlet, GFCI, breaker, plug and any product-specific power indicator. An illuminated power light confirms electricity only if that is how the indicator is designed to work.
Confirm Active Heating
Follow the product’s testing instructions to determine whether the thermostat is activating the heating cable. Do not bypass or modify the thermostat to force the cable on.
Trace the Cable Coverage
Check whether the heating cable covers the entire freeze-prone section, including nearby valves, fittings and transitions into walls or unheated spaces.
Inspect the Remaining Pipe Route
Trace as much of the plumbing route as possible. Look for another exposed or hidden section that may contain a second ice blockage.
Check the Insulation
Confirm that suitable nonflammable pipe insulation covers the cable, thermostat, valves and other protected areas according to the product instructions.
If the Pipe Is Already Frozen
Pipe heating cable is primarily designed to prevent freezing. Once a solid ice blockage forms, thawing time depends on the blockage location, pipe material, surrounding temperature, insulation and whether more than one section is frozen.
Leaving a working heating cable powered for a certain number of hours does not guarantee that water flow will return. The blockage may be outside the heated area, and the pipe may already have cracked while frozen.
Safety Warning
Never use an open flame to thaw a frozen pipe. Keep access to the main water shutoff and watch carefully for leaks as water flow begins to return.
Watch for Damage as the Pipe Thaws
Ice can temporarily seal a split pipe. Damage may only become visible when the ice melts and water pressure returns.
- Water around valves or fittings
- Wet or discolored insulation
- Bulging, cracked or split pipe
- Water appearing inside a wall or floor
- Unexpected loss of water pressure
If you notice leakage, electrical damage, repeated GFCI trips or a damaged cable jacket, disconnect the heating cable when it is safe to do so and seek qualified assistance.
Key Takeaways
- A power light may confirm electricity without confirming active heating.
- A thermostat may keep the cable off when its sensor detects a warmer temperature.
- A warm cable does not prove that it covers the actual frozen section.
- Trace the complete pipe route because more than one section may be frozen.
- Correct cable coverage, thermostat placement and pipe insulation before the next freeze.
Want to See Power and Heating Status Separately?
The MAXKOSKO Dual-Indicator Pipe Heating Cable uses separate lights for power connection and active heating. This makes it easier to tell whether electricity is available and whether the built-in thermostat is currently calling for heat.
The indicators cannot locate an ice blockage, so correct cable length, thermostat placement and complete coverage of the freeze-prone pipe section remain essential.
View Dual-Indicator Pipe Heating Cable
Prefer a standard thermostatically controlled model without a separate heating-status light? View the MAXKOSKO Self-Regulating Pipe Heating Cable.
Frequently Asked Questions
Does a light on heat tape mean it is heating?
Not necessarily. Some indicator lights confirm only that electrical power is available, while other products provide a separate indicator for active heating. Check the instructions for your specific cable.
Can heat tape have power without getting warm?
Yes. A thermostatically controlled cable can have power available while the thermostat keeps the heating circuit off because the sensed temperature is above its activation range.
Why is the heat tape warm but the pipe is still frozen?
The ice blockage may be past the end of the cable, inside a wall, near a valve or fitting, or in another part of the plumbing. There may also be more than one frozen section.
Does a warm cable prove that the thermostat is installed correctly?
No. It confirms that the cable is producing heat at that moment, but it does not prove that the thermostat is sensing the coldest section or that the cable covers the complete freeze-prone area.
Should I move the thermostat to a colder location?
Follow the installation instructions for your specific product. Thermostat designs vary, and the thermostat should not be relocated, modified or bypassed in a way that conflicts with the manufacturer’s instructions.
