Choosing between the MAXKOSKO Blue and Dual-LED pipe heat cables is simpler than it may appear. Both are 120V self-regulating external pipe heating cables with built-in pipe thermostats, similar rated heating output, and similar installation requirements. The main difference is visibility: the Blue model uses a single power indicator, while the Dual-LED model adds a separate red light that shows when the thermostat has activated the heating circuit.

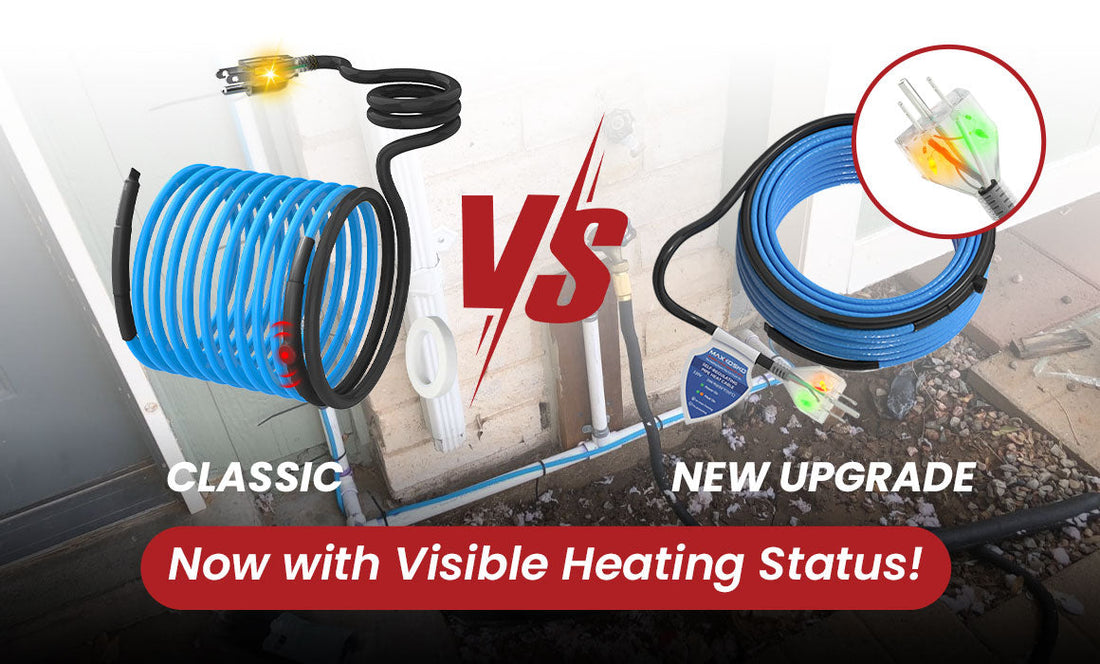

Blue vs Dual-LED Pipe Heat Cable: The Main Difference
If your main question is which cable provides more heating power, the current specifications make the answer clear: these two products are much more similar than different.
Both currently provide approximately 5W/ft at 50°F (10°C) and approximately 6W/ft at 40°F (4°C). Both use self-regulating heating cable and a built-in pipe thermostat that typically starts heating below approximately 37°F (3°C) and stops after the pipe reaches approximately 50°F (10°C).
The important difference is the indicator system.
Power Status
The plug indicator confirms that electrical power is connected. It does not separately confirm that the built-in thermostat is currently calling for heat.
Power + Heating Status
The green light confirms electrical power, while the red light shows that the thermostat has activated the heating circuit.
Think of Dual-LED as a Status Upgrade
The Dual-LED version should not be treated as a higher-output or extreme-cold version of the Blue cable. Its main additional feature is a separate visual indicator for active heating.
Blue vs Dual-LED Specifications
| Feature | Blue Pipe Heat Cable | Dual-LED Pipe Heat Cable |
|---|---|---|
| Product Type | Self-regulating external pipe heating cable | Dual-LED self-regulating external pipe heating cable |
| Rated Voltage | 110–120V AC | 110–120V AC |
| Rated Output | Approximately 5W/ft at 50°F (10°C) and 6W/ft at 40°F (4°C) | Approximately 5W/ft at 50°F (10°C) and 6W/ft at 40°F (4°C) |
| Temperature Control | Built-in mechanical pipe thermostat | Built-in pipe thermostat |
| Typical Heating Start | Below approximately 37°F (3°C) | Below approximately 37°F (3°C) |
| Typical Heating Stop | Approximately 50°F (10°C) | Approximately 50°F (10°C) |
| Power Indicator | Single indicator confirms electrical power | Green indicator confirms electrical power |
| Active Heating Indicator | No separate heating-status light | Red indicator shows heating has been activated |
| Power Cord | 3 ft additional to selected heating length | 3 ft additional to selected heating length |
| Installation Methods | Straight trace, spiral wrap, or approved overlap | Straight trace, spiral wrap, or approved overlap |
| Compatible Pipe Type | Compatible rigid metal and plastic pipes, empty or water-filled | Compatible rigid metal and plastic pipes, empty or water-filled |
| Pipe Insulation | Required according to the product instructions | Required according to the product instructions |
| Ground-Fault Protection | Required on the 120V supply | Required on the 120V supply |
What Does the Blue Pipe Heat Cable Light Mean?
The indicator on the Blue model confirms that electricity is available at the plug.
That does not automatically mean the heating section is currently energized.
The built-in thermostat still controls heating according to the temperature it senses directly on the pipe. If the pipe is warm enough, the cable can have power available while the thermostat keeps the heating circuit off.
This means the following condition can be completely normal:
- The Blue indicator is illuminated.
- The pipe temperature is above the thermostat's heating threshold.
- The heating section does not feel noticeably warm.
A Power Light Is Not a Heating Light
With the Blue model, interpret the light as confirmation that electrical power is available. If you need to determine whether the thermostat and heating cable are operating, follow the product testing instructions rather than relying on the indicator alone.
What Do the Green and Red Lights Mean on the Dual-LED Cable?
The Dual-LED version separates two pieces of information that the Blue model does not display independently.
Electrical Power Is Connected
The green indicator confirms that electrical power is available. The heating circuit may still be in standby because the pipe is warm enough.
The Thermostat Has Activated Heating
The red indicator shows that the built-in thermostat has detected a sufficiently cold pipe temperature and activated the heating circuit.
This can make routine status checks easier, especially when the plug and indicator area are visible without removing pipe insulation or touching the heating cable itself.
Does the Dual-LED Cable Provide Real-Time Monitoring?
It provides local visual status information, but it should not be confused with a remote monitoring system.
The two lights can show:
- Whether electrical power is connected
- Whether the built-in thermostat has activated the heating circuit
They do not provide:
- Remote app monitoring
- Pipe temperature readings
- Energy-use data
- Fault codes
- Automatic notification of a frozen pipe
- Confirmation that the complete plumbing route is protected
Red Light On Does Not Mean the Pipe Is Guaranteed Safe
The red light confirms that the thermostat has energized the heating circuit. It cannot confirm that the cable covers the actual freeze point, that the insulation is correct, that another section of pipe is not frozen, or that the plumbing has not already been damaged.
Is the Dual-LED Version Better for Extreme Cold?
Not because of the indicator lights.
The current published heating output and typical thermostat operating range are similar for the Blue and Dual-LED models.
Therefore, choosing the Dual-LED version should not be treated as an automatic upgrade in cold-weather heating capacity.
For colder applications, the more important questions are:
- What pipe diameter are you protecting?
- How long is the actual freeze-prone section?
- Will the cable run straight, spiral, or use an approved overlap?
- What insulation thickness is required?
- Are valves and fittings included in the protected route?
- Where is the coldest section of pipe?
- What winter temperatures should the installation handle?
Review the complete product manual for pipe-size, temperature, cable-length, installation, and insulation requirements rather than selecting a model based only on the number of indicator lights.
Which Pipe Heat Cable Should You Choose?
| Your Priority | Option to Consider | Why |
|---|---|---|
| Automatic temperature control without extra status information | Blue | The built-in thermostat provides automatic operation, while the plug light confirms power. |
| Want to distinguish power from active heating visually | Dual-LED | The green and red indicators separate electrical-power status from thermostat heating status. |
| Plug is visible but cable is covered by insulation | Dual-LED may be useful | The separate heating-status light reduces the need to judge operation by touching insulated pipe. |
| Do not need a separate heating-status light | Blue | The core self-regulating and thermostat functions are similar. |
| Need greater cold-weather protection | Either, after proper sizing | Choose based on pipe size, cable length, insulation, installation route, and product instructions—not the indicator system alone. |
The Right Choice Is Mostly About Visibility
If you do not need a separate visual indication that the thermostat is calling for heat, the Blue model may provide the automatic control you need. If that status information is useful, the Dual-LED model adds it without fundamentally changing the core heating concept.
Thermostat Placement Matters on Both Models
Both products rely on a pipe-mounted thermostat. Where that thermostat senses temperature can affect when heating begins and stops.
The thermostat should be secured directly against the coldest section of the protected pipe according to the product instructions.
Do not allow the thermostat to:
- Hang in the surrounding air
- Rest directly on the heating cable
- Sit in a warmer indoor area while the vulnerable pipe is farther outside
- Be moved or bypassed simply to force earlier heating
If the sensor is positioned incorrectly, even a Dual-LED cable can display perfectly normal indicator behavior while activating at the wrong time for the actual freeze-prone section.
Do Not Modify the Thermostat to Change Its Trigger Point
Follow the installation instructions for the exact model. Do not bypass, relocate, or modify the built-in thermostat in a way that conflicts with the product requirements.
Pipe Insulation Is Required With Both Models
The indicator system does not replace pipe insulation.
After installation, the pipe, heating cable, thermostat, valves, and other protected sections should be covered with suitable nonflammable pipe insulation according to the product instructions.
Correct insulation helps:
- Reduce heat loss to cold surrounding air
- Keep more heat near the protected pipe
- Improve system performance during colder weather
- Protect the complete freeze-prone section rather than only the cable contact point
A red heating light cannot compensate for missing, damaged, wet, or unsuitable insulation.
How to Test the Cable Before Installation
Both products should be tested according to their instructions before they are permanently installed and insulated.
For these thermostat-controlled models, the current product guidance allows the thermostat to be cooled with ice water, ice packs, or the specified cold-test method so that the thermostat can be checked before installation.
With the Blue model, confirm that the cable begins warming when the thermostat calls for heat.
With the Dual-LED model, both the power and heating indicators should operate as described when the thermostat activates the cable.
Do Not Bypass the Thermostat for Testing
If the cable does not respond as expected, inspect the power supply, ground-fault protection, thermostat, cable, and connections. Do not bypass the thermostat or other protective devices to force the heating section on.
How Much Cable Do You Need?
The indicator configuration does not change the need to size the heating cable correctly.
Start with the actual freeze-prone pipe route and account for:
- Straight pipe length
- Valves
- Elbows
- Tees and larger fittings
- Straight vs spiral installation
- Any approved overlap required by the exact installation plan
The selected product length refers to the heating section. Both current models also have an additional approximately 3 ft non-heating power cord.
For detailed planning, use the MAXKOSKO pipe heating cable length guide.
What If the Light Is On but the Pipe Still Freezes?
That question is different from choosing between Blue and Dual-LED.
Even when power and active-heating status appear normal, the system may still need inspection for:
- Incorrect thermostat location
- A freeze point beyond the end of the cable
- A valve or fitting that needs additional coverage
- Missing or damaged insulation
- A second frozen pipe section
- Cable or electrical damage
If your main problem is determining whether an already installed cable is operating correctly, use the MAXKOSKO guide to checking whether heat tape is working.
Can Either Cable Be Used to Thaw an Already Frozen Pipe?
These products should primarily be selected for freeze prevention, not guaranteed emergency thawing.
If the pipe has already frozen, thawing time depends on the ice blockage, cable coverage, pipe material, insulation, surrounding temperature, and whether the plumbing has already been damaged.
Do not assume that adding a Dual-LED model will thaw a frozen pipe faster than the Blue model simply because it provides a separate heating-status light.
Inspect a Frozen Pipe Before Relying on Heating Cable
If a pipe is cracked, bulging, leaking, electrically unsafe, or in an unknown condition, address that problem before treating heating cable as the solution. Ice can temporarily hide a split pipe, and leakage may appear as water flow returns.
For prevention planning, read the MAXKOSKO pipe heating cable freeze-prevention guide.
Key Takeaways
- The Blue and Dual-LED pipe heating cables have similar core heating and thermostat functions.
- Both are 110–120V self-regulating external pipe heating cables with built-in temperature control.
- Both currently provide approximately 5W/ft at 50°F (10°C) and 6W/ft at 40°F (4°C).
- Both typically begin heating below approximately 37°F (3°C) and stop around 50°F (10°C).
- The Blue indicator confirms power but does not separately show active heating.
- The Dual-LED green light confirms power and the red light confirms that the thermostat has activated heating.
- Dual indicators provide local visual status, not remote monitoring or complete system diagnostics.
- The Dual-LED model should not be treated as a higher-output extreme-cold version of the Blue model.
- Correct thermostat placement, cable coverage, ground-fault protection, and pipe insulation remain important with either model.
- Choose Dual-LED when separate heating-status visibility is useful; choose Blue when standard automatic thermostat control is enough.
Choose the Indicator System That Fits Your Installation
If you want built-in automatic temperature control and do not need a separate active-heating light, the MAXKOSKO Blue Pipe Heat Cable provides the standard thermostatically controlled option.
If you want to distinguish electrical power from active heating with a quick visual check, the MAXKOSKO Dual-LED Pipe Heat Cable adds separate green and red indicators while retaining similar self-regulating heating and thermostat functions.
If neither option exactly matches the project, compare the available MAXKOSKO External Pipe Heating Cables before choosing based on pipe material, diameter, freeze-prone length, temperature, control method, insulation, and available power.
Frequently Asked Questions
What is the difference between the MAXKOSKO Blue and Dual-LED pipe heat cables?
The core heating and thermostat functions are similar. The main difference is that the Blue model has a power indicator, while the Dual-LED model separates power and active-heating status into green and red lights.
Does the Blue pipe heat cable light mean it is heating?
No. The Blue model's indicator confirms that electrical power is connected. The built-in thermostat determines whether the heating circuit is currently operating.
What does the green light mean on the Dual-LED heat cable?
The green light confirms that electrical power is connected. The cable may still be in standby if the thermostat does not currently require heating.
What does the red light mean on the Dual-LED heat cable?
The red light shows that the built-in thermostat has activated the heating circuit because it detected a sufficiently cold pipe temperature.
Is the Dual-LED cable more powerful than the Blue cable?
Not based on the current published specifications. Both are rated at approximately 5W/ft at 50°F (10°C) and 6W/ft at 40°F (4°C). The Dual-LED model's main additional feature is its separate heating-status indicator.
Is the Dual-LED cable better for extreme cold?
The additional indicator does not increase heating output. Cold-weather suitability depends on pipe size, cable length, installation layout, insulation, actual winter temperature, and the requirements in the product manual.
Does the Dual-LED cable provide remote monitoring?
No. The green and red lights provide local visual status at the cable control area. They do not provide app monitoring, remote alerts, temperature data, or fault diagnostics.
Why is the green light on but the red light off?
This normally means electrical power is connected but the built-in thermostat is not currently calling for heat because the sensed pipe temperature is above its activation range.
Does a red light guarantee my pipe will not freeze?
No. It confirms that the thermostat has activated the heating circuit. Correct cable coverage, thermostat placement, insulation, electrical protection, and the condition of the rest of the plumbing still matter.
Which model should I buy?
Choose the Blue model if built-in automatic thermostat control is enough. Choose Dual-LED if having a separate visual indication of active heating is useful for your installation. Then size the cable according to the actual pipe route and product instructions.
