MAXKOSKO In-Pipe Heating Cable with Y-Fitting for Drinking Water Pipes, 120V CSA Self-Regulating Heat Trace with GFCI
5 in stock
Couldn't load pickup availability
Payment Reminder
- Our website accepts Visa, MasterCard, and American Express. If you are using a card issued by another bank, please ensure it is enabled for international transactions.
- During payment, you may be required to complete 3D Secure (3DS) verification. Please ensure that the cardholder completes the verification to avoid payment failure.
- If your usual spending amounts are relatively low and you are making a larger purchase, your bank may flag the transaction as a potential risk. If your payment fails, please contact your bank to approve the transaction.
Description

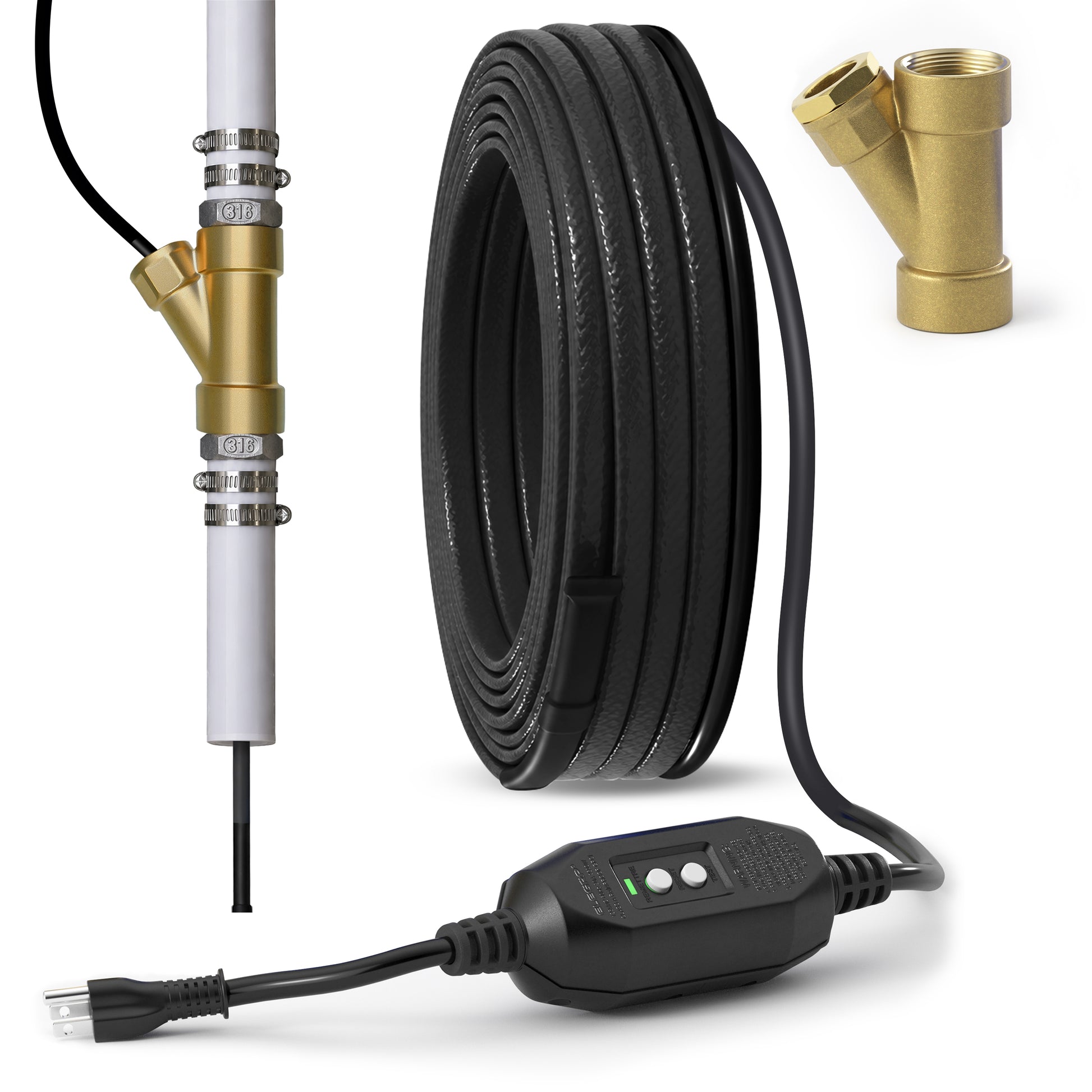

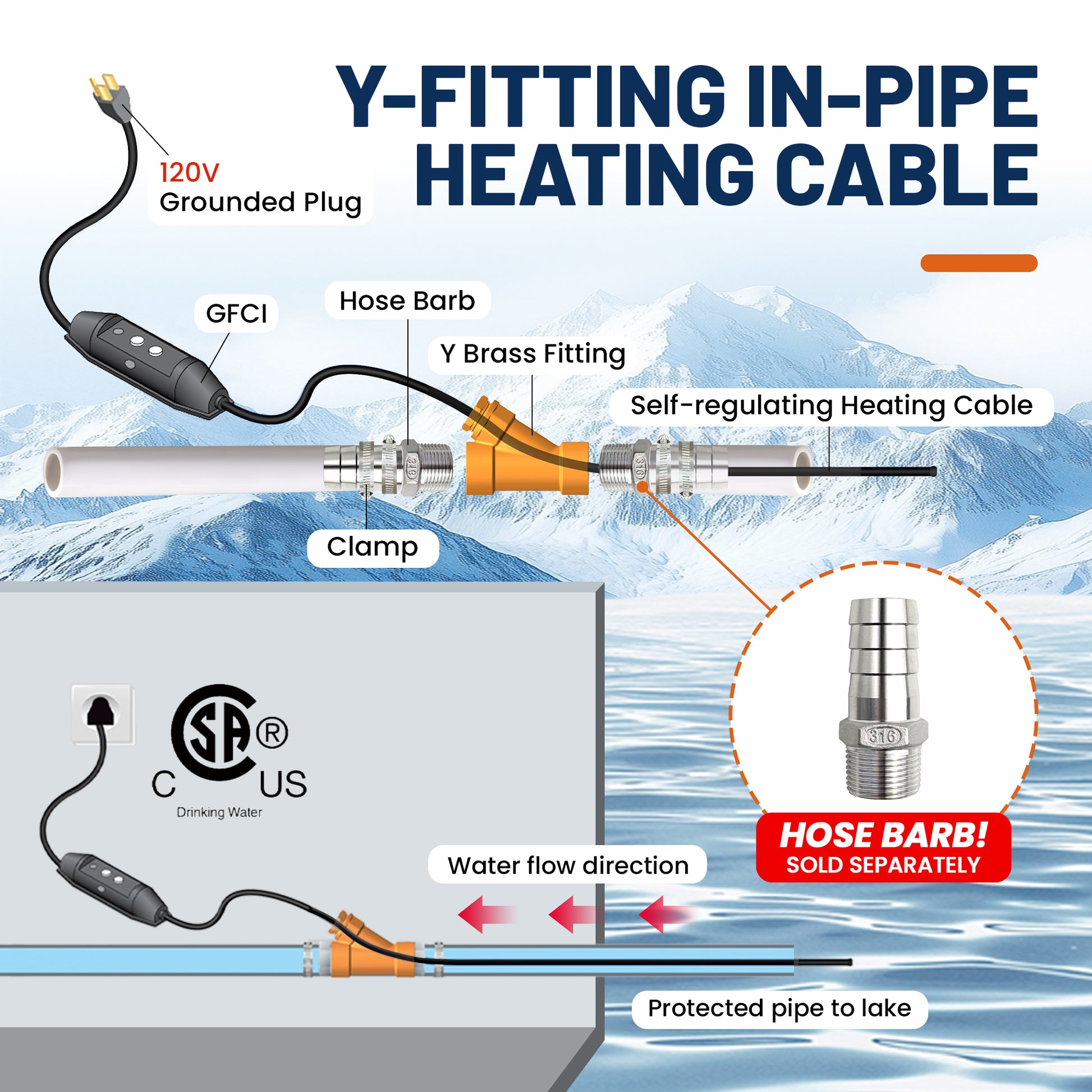

In-Pipe Drinking Water Heating Cable with Integrated Y-Fitting

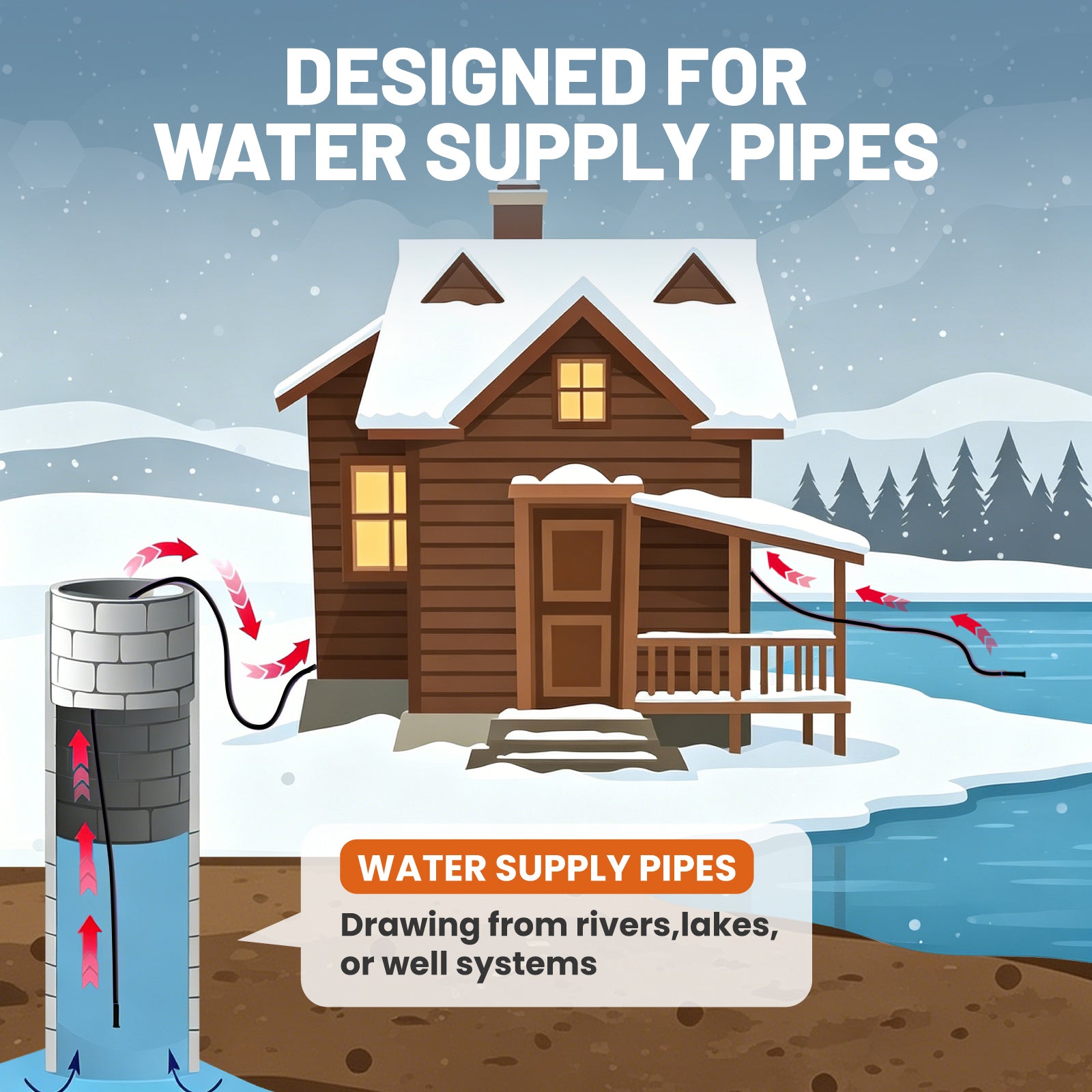

MAXKOSKO In-Pipe Heating Cable with Brass Y-Fitting provides internal freeze protection for compatible pressurized drinking water lines, buried pipes, well systems, cabins, farms, and seasonal properties.
The integrated brass Y-fitting creates a smoother 45° cable entry path, reducing the need to source a separate T-fitting and simplifying installation compared with the standard in-pipe model.

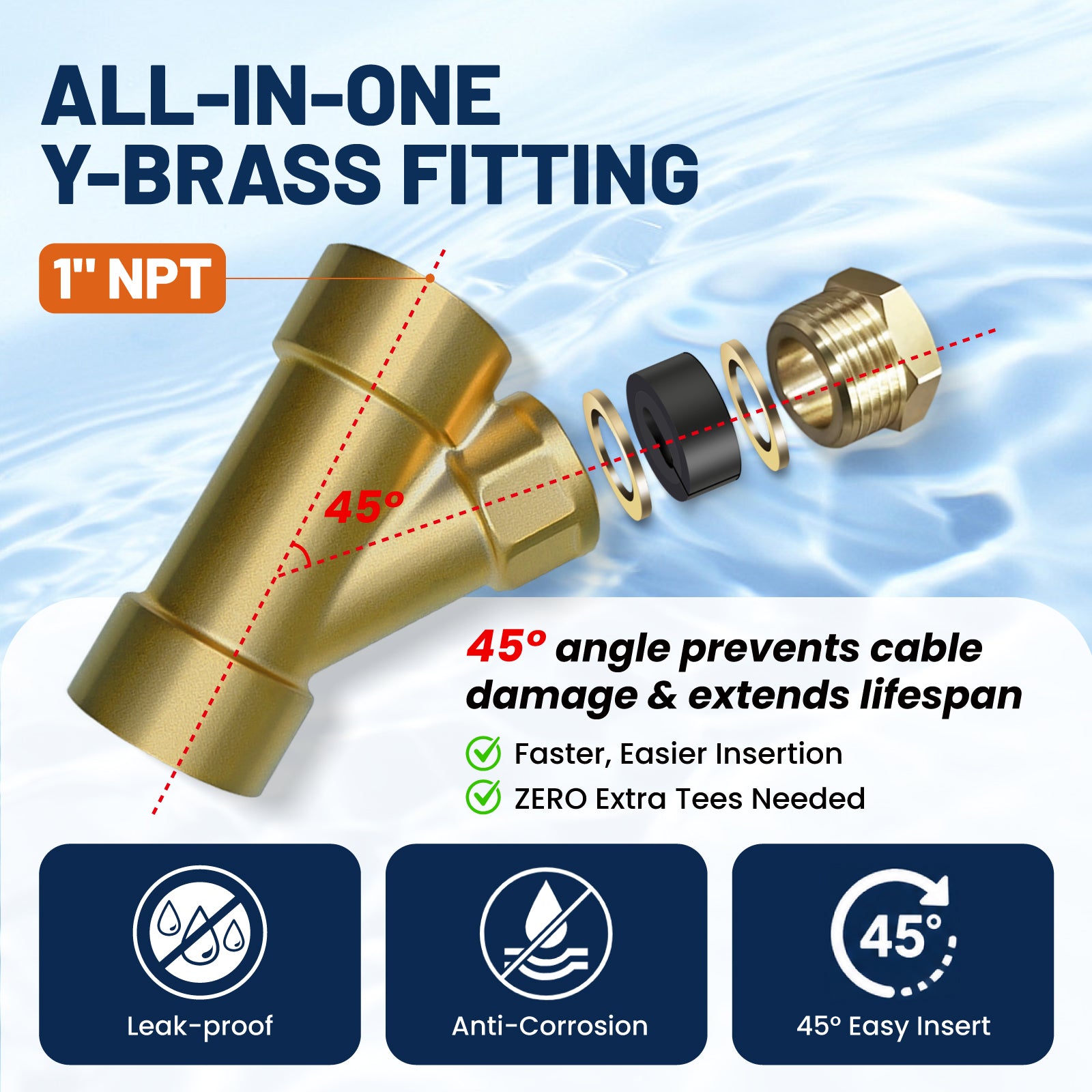

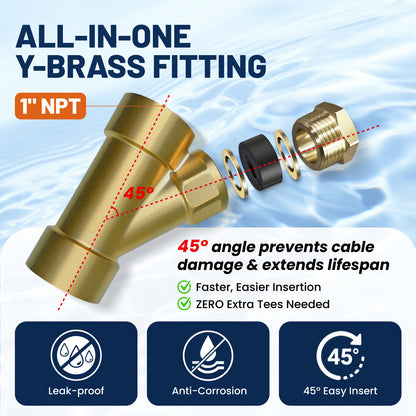

Integrated Brass Y-Fitting
Provides a built-in cable entry point with a smoother 45° insertion angle.
Potable Water Certified
CSA and NSF/ANSI 61 certification support use in compatible drinking water pipe systems.
230 PSI Pressure Rating
Designed for compatible pressurized residential, rural, well, and farm water lines.

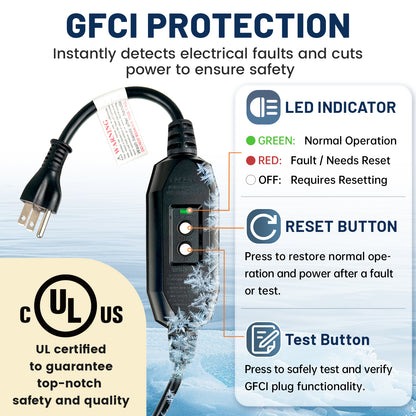

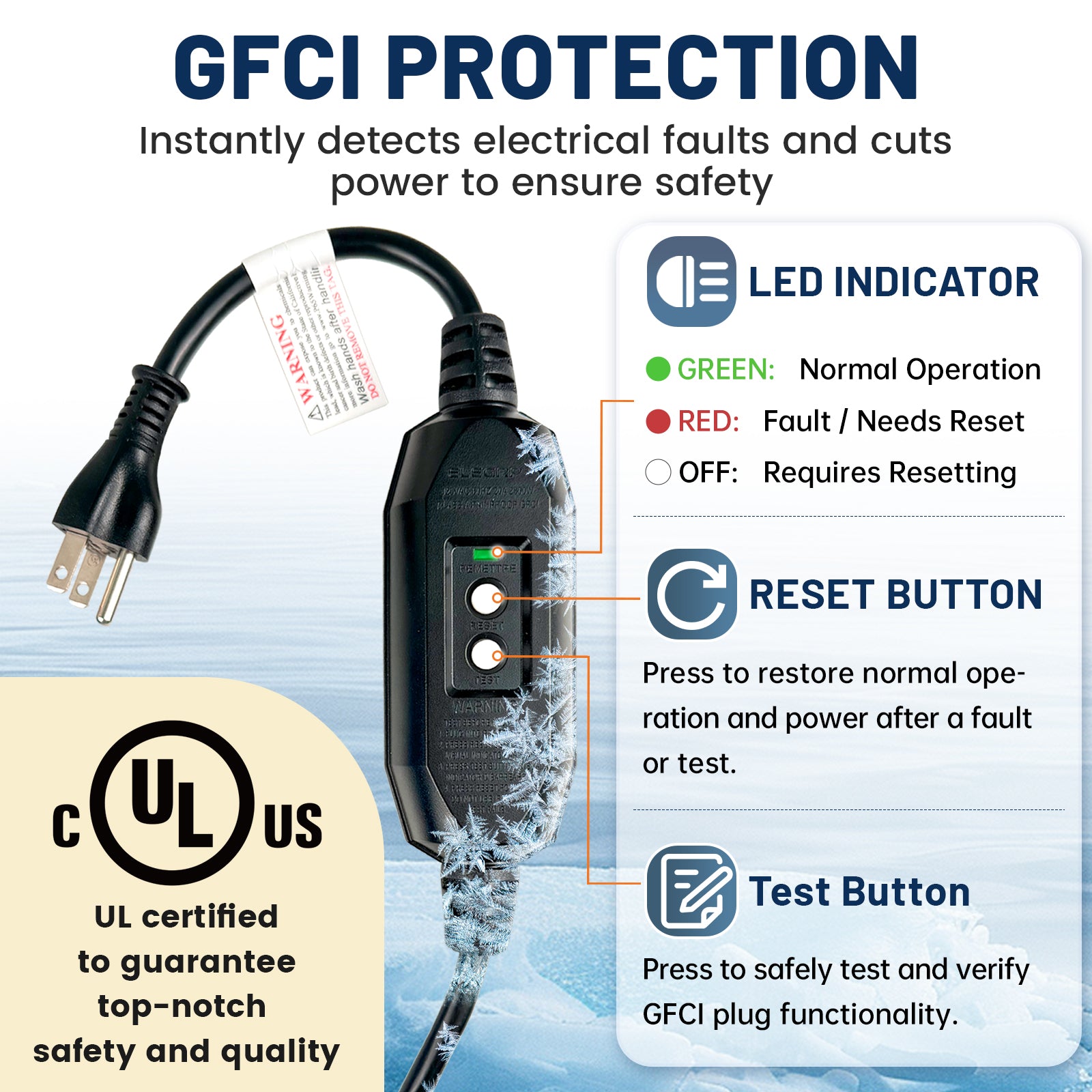

Built-In GFCI Plug
Adds electrical leakage protection for properly installed 120V wet-location applications.
Important Before Ordering
Inspect the Cable and Confirm the Pipe Route

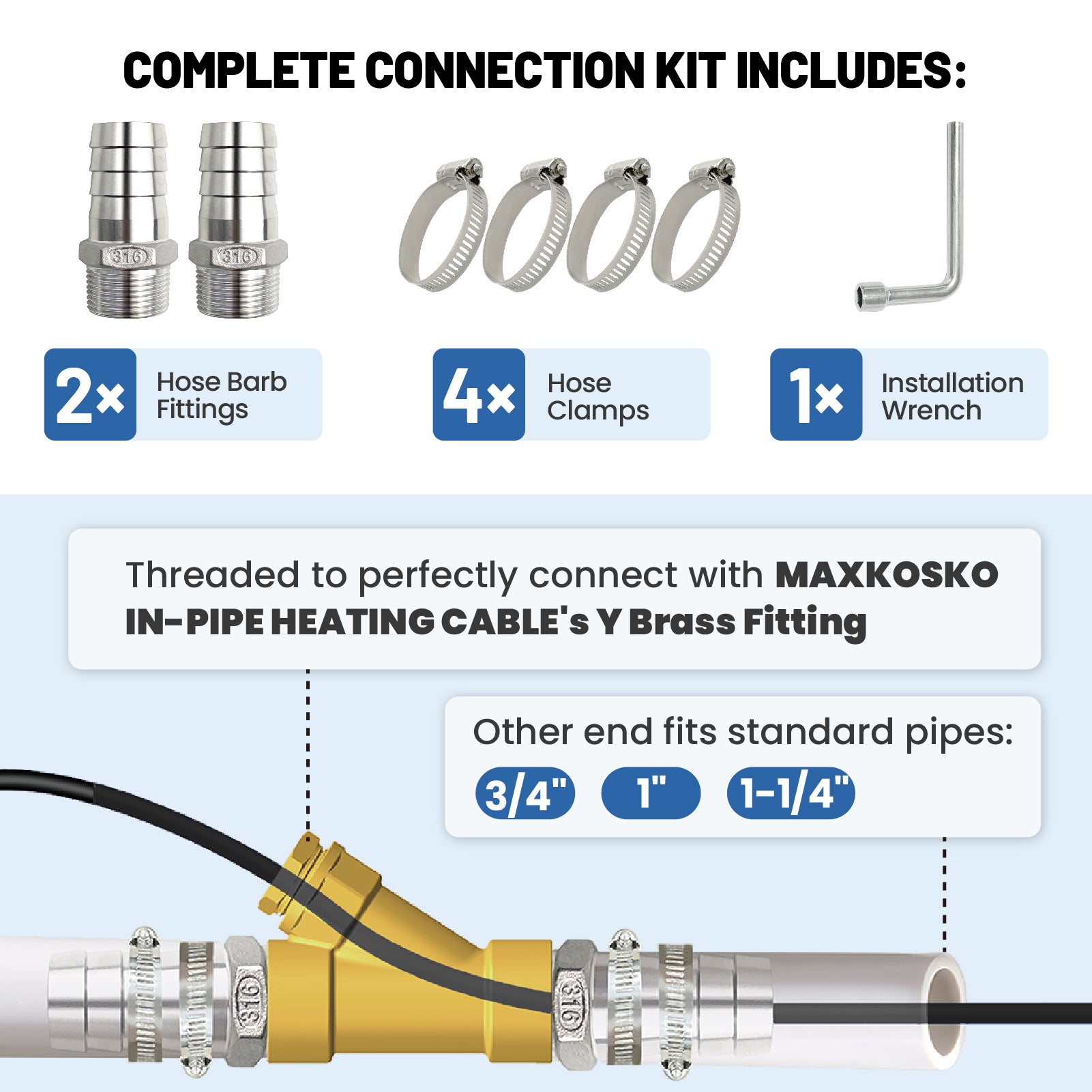

Integrated Fitting: The brass Y-fitting is included, reducing the need to purchase a separate T-fitting for the main cable entry.
Recommended Pipe Size: Designed for compatible pipes 3/4 in and larger. Confirm that every pipe connection, adapter, valve, and bend provides enough internal clearance.
No Sharp Elbows: Do not force the cable through sharp elbows, restricted fittings, blockages, collapsed pipes, or unknown internal routes.
Factory Inspected: Every MAXKOSKO cable is fully inspected before shipment. Inspect the complete outer jacket, end seal, and fitting again before installation.
Outer Jacket Must Be Undamaged: Cuts, cracks, abrasion, crushing, or end-seal damage can cause leakage or electrical failure. Do not install a damaged cable.
Contact Support: If you find any damage before installation, stop and email photos to maxkosko@maxkosko.com.
Avoid Forceful Installation: Insert the cable slowly and gently. Pulling, hammering, twisting, or forcing it through a tight route can damage the outer jacket and lead to water leakage.

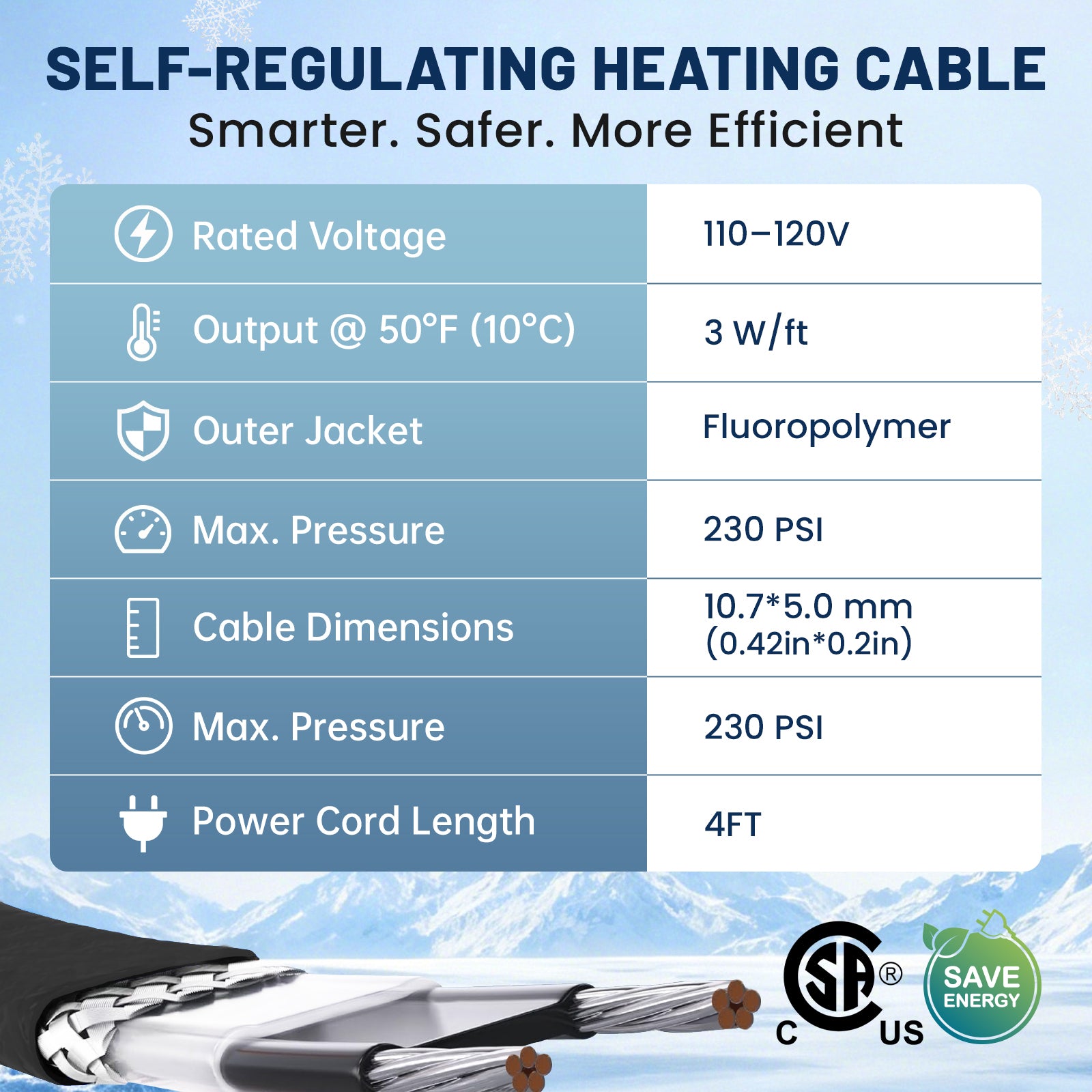

Specifications
| Product Type | In-Pipe Drinking Water Heating Cable with Integrated Y-Fitting |
| Rated Voltage | 120V AC |
| Heat Output | Approximately 3W/ft at 50°F (10°C) |
| Maximum Water Pressure | 230 PSI |
| Pipe Entry | Integrated Heavy-Duty Brass Y-Fitting |
| Entry Angle | Approximately 45° |
| Recommended Pipe Size | 3/4 in and Larger |
| Application | Pressurized Potable Water Pipe Freeze Protection |
| Certification | CSA and NSF/ANSI 61 |
| Electrical Protection | Built-In GFCI Plug |
| Outer Jacket | Potable-Water-Compatible Fluoropolymer |
| Field Modification | Do Not Cut, Shorten or Splice the Heating Cable |
Compare MAXKOSKO In-Pipe Heating Cables View Comparison Hide Comparison
| Product | Best For | Pipe Entry | Main Difference |
| Standard Potable Water Cable | Pressurized drinking water, wells, cabins, buried water lines | Separate T-fitting required | 230 PSI, 3W/ft, 120V or 240V options |
| Y-Fitting Potable Water Cable | Pressurized drinking water where easier insertion is preferred | Integrated brass Y-fitting | 230 PSI, NSF/ANSI 61, easier 45° cable entry |
| Upgraded 5W Water & Sewer Cable | Sewer, septic, sump, and drain systems | Confirm compatible entry fitting | 5W/ft, broader application range, built-in GFCI plug |
| Standard Sewage Pipe Cable | Sewer, septic, wastewater, sump, and drainage applications | Confirm compatible drain entry | Non-potable applications, 100 PSI, lower-output option |
Basic Installation Requirements View Requirements Hide Requirements
- Confirm the pipe size, cable length, pressure, and internal route before ordering.
- Shut off and drain the water supply before installing the Y-fitting.
- Inspect the cable jacket and end seal before insertion.
- Insert the cable gradually through the 45° Y-fitting entry.
- Do not force the cable through sharp bends or narrow pipe components.
- Complete all seals and pressure-test the plumbing before restoring service.
- Read the complete product manual before installation.
Frequently Asked Questions
What is the advantage of the Y-fitting version?
The included brass Y-fitting provides an integrated cable entry with a smoother 45° angle, reducing cable stress and simplifying installation.
Is it suitable for drinking water?
Yes. This model is designed for compatible potable water systems and is listed as CSA and NSF/ANSI 61 certified.
Can I force it through a tight elbow?
No. Forceful installation can damage the outer jacket or end seal and may cause leakage. The pipe route must allow smooth and gradual cable insertion.
What if I notice a cut or abrasion before installation?
Do not install the cable. Send photos and your order details to maxkosko@maxkosko.com.
Does it include automatic thermostat control?
No. Self-regulating technology adjusts heat output but does not fully turn off. Pair it with the MAXKOSKO 120V Thermostat Controller for automatic temperature-based power control.
Controller & Product Selection
For automatic seasonal control and reduced energy use, pair this cable with the MAXKOSKO 120V Pipe Heating Cable Thermostat Controller.
Before ordering, confirm that the line is a pressurized drinking water pipe and that the cable route does not include sharp or restricted internal bends.
