MAXKOSKO 120V Underfloor Radiant Heating System, Heating Mat Only or Complete Smart Kit with WiFi Thermostat, Floor Sensor, Alarm Monitor
10 in stock
Couldn't load pickup availability
Payment Reminder
- Our website accepts Visa, MasterCard, and American Express. If you are using a card issued by another bank, please ensure it is enabled for international transactions.
- During payment, you may be required to complete 3D Secure (3DS) verification. Please ensure that the cardholder completes the verification to avoid payment failure.
- If your usual spending amounts are relatively low and you are making a larger purchase, your bank may flag the transaction as a potential risk. If your payment fails, please contact your bank to approve the transaction.
Description

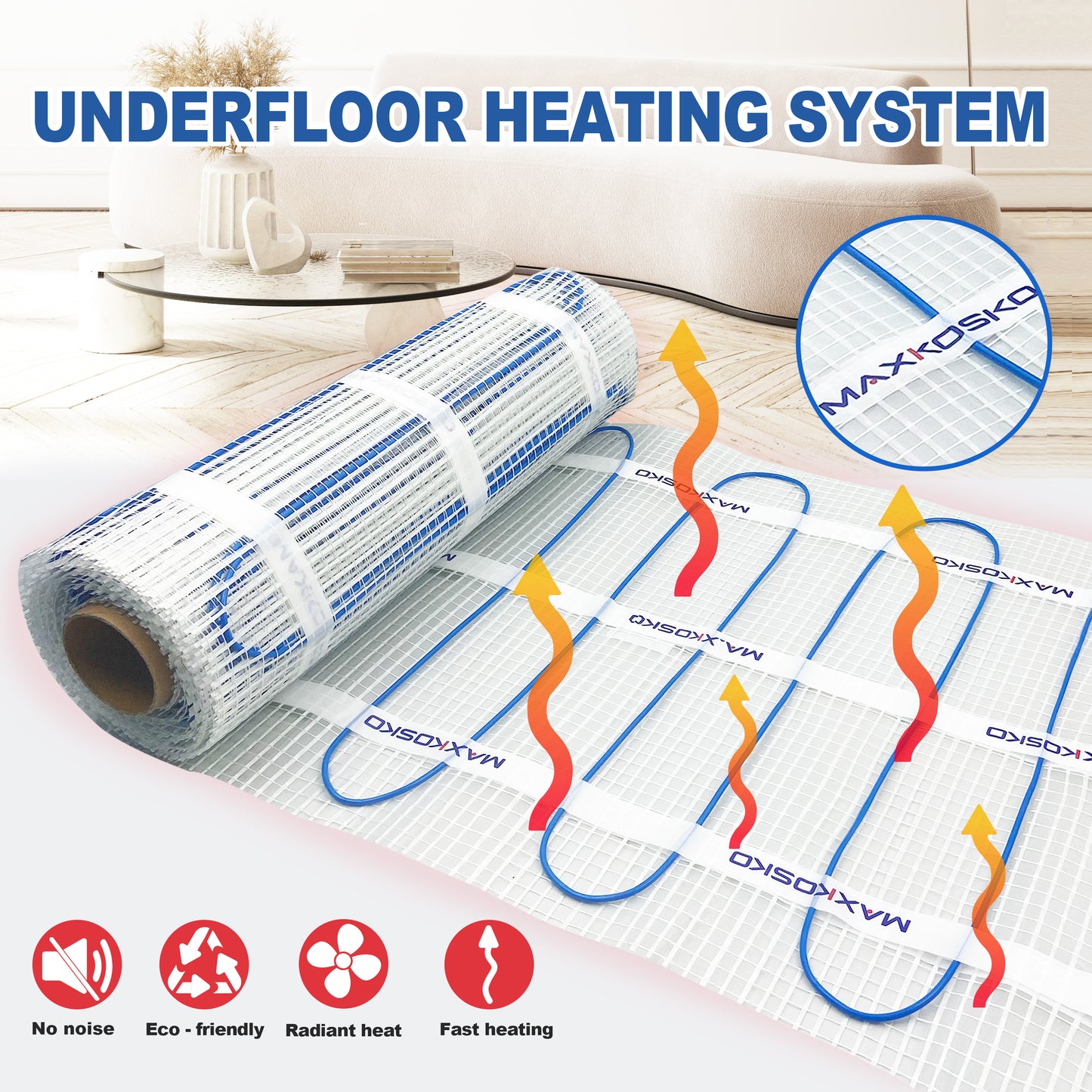

120V Electric Heated Floor Mat Kit
MAXKOSKO Electric Heated Floor Mat provides pre-spaced radiant floor heating for bathrooms, kitchens, entryways, basements, and other indoor renovation projects.
The heating cable is secured to a self-adhesive fiberglass mesh for faster layout in open floor areas. The mesh can be cut and turned to change direction, but the blue heating cable must never be cut, shortened, crossed, or overlapped.
Choose the Heating Mat Only package when you already have a compatible thermostat, or select the All-in-One Smart Kit for a pre-matched WiFi thermostat package.
12W per Square Foot
Provides consistent radiant floor heat for compatible indoor flooring installations.

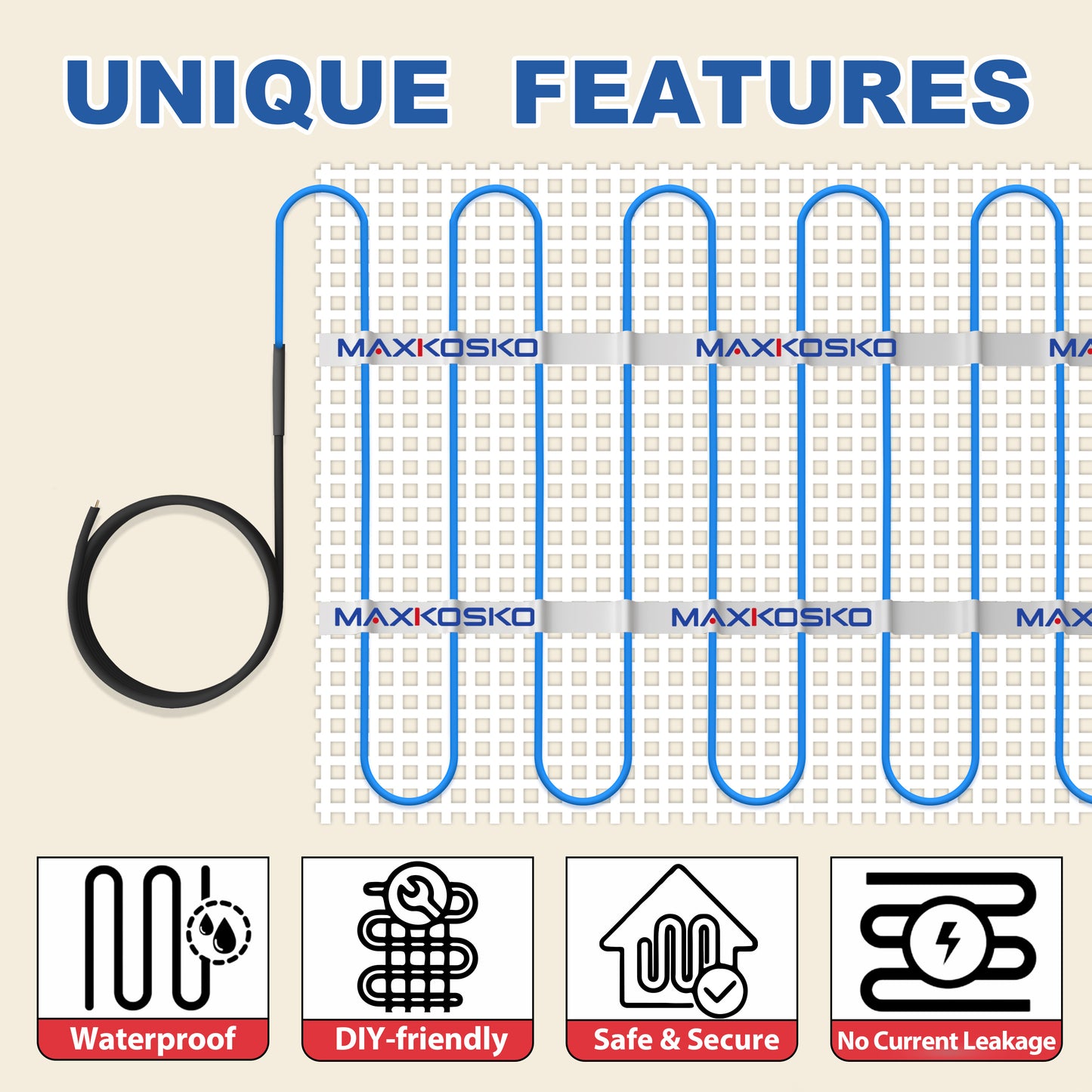

Pre-Spaced Heating Cable
The factory-arranged mesh maintains even cable spacing and simplifies installation in open floor areas.

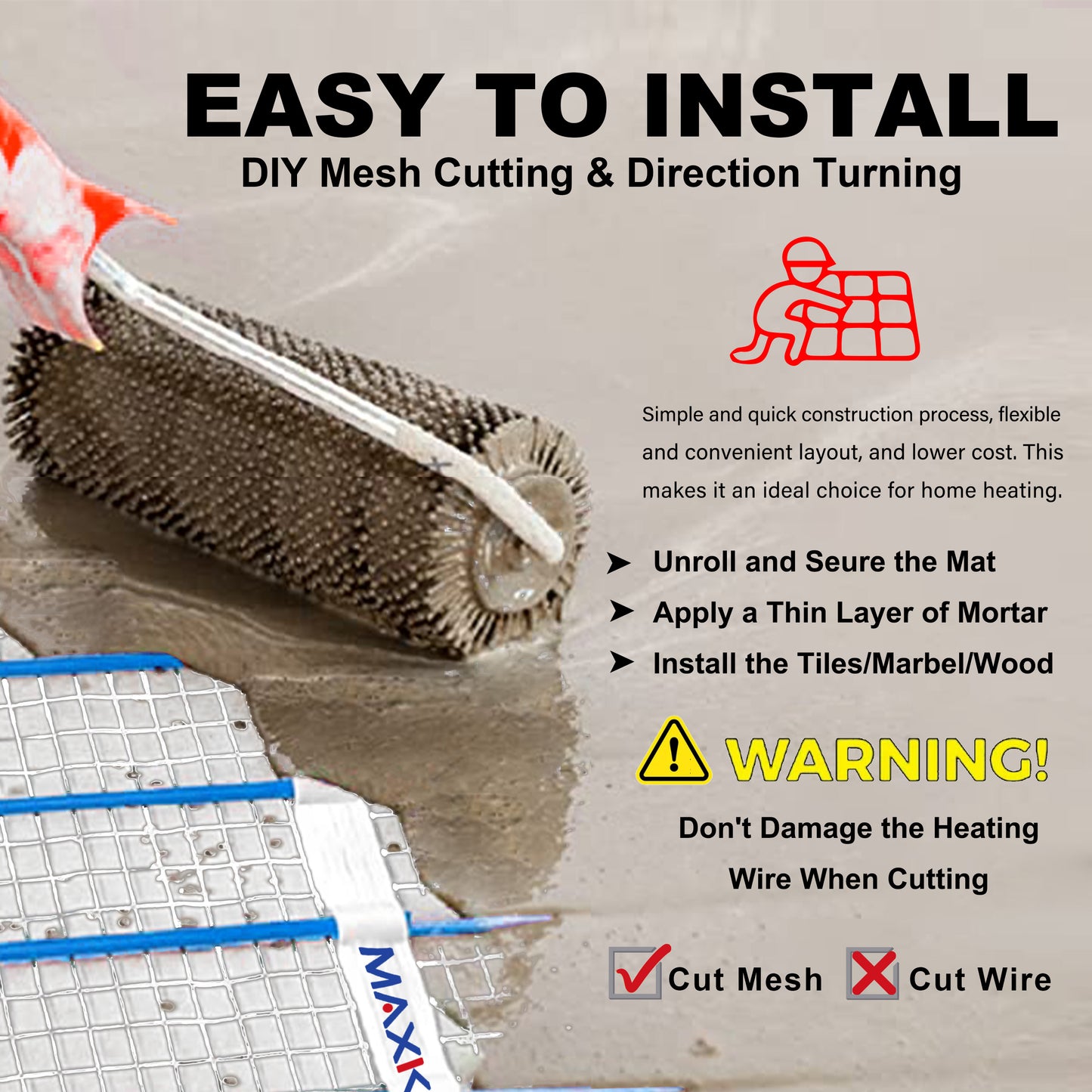

Cut-and-Turn Mesh
Cut the fiberglass mesh backing to rotate or redirect the mat around room features without cutting the heating cable.
Two Package Options
Select the heating mat package alone or choose a complete kit with a touchscreen WiFi thermostat.
Floor Sensor Included
Both package options include a floor temperature sensor for compatible thermostat control.

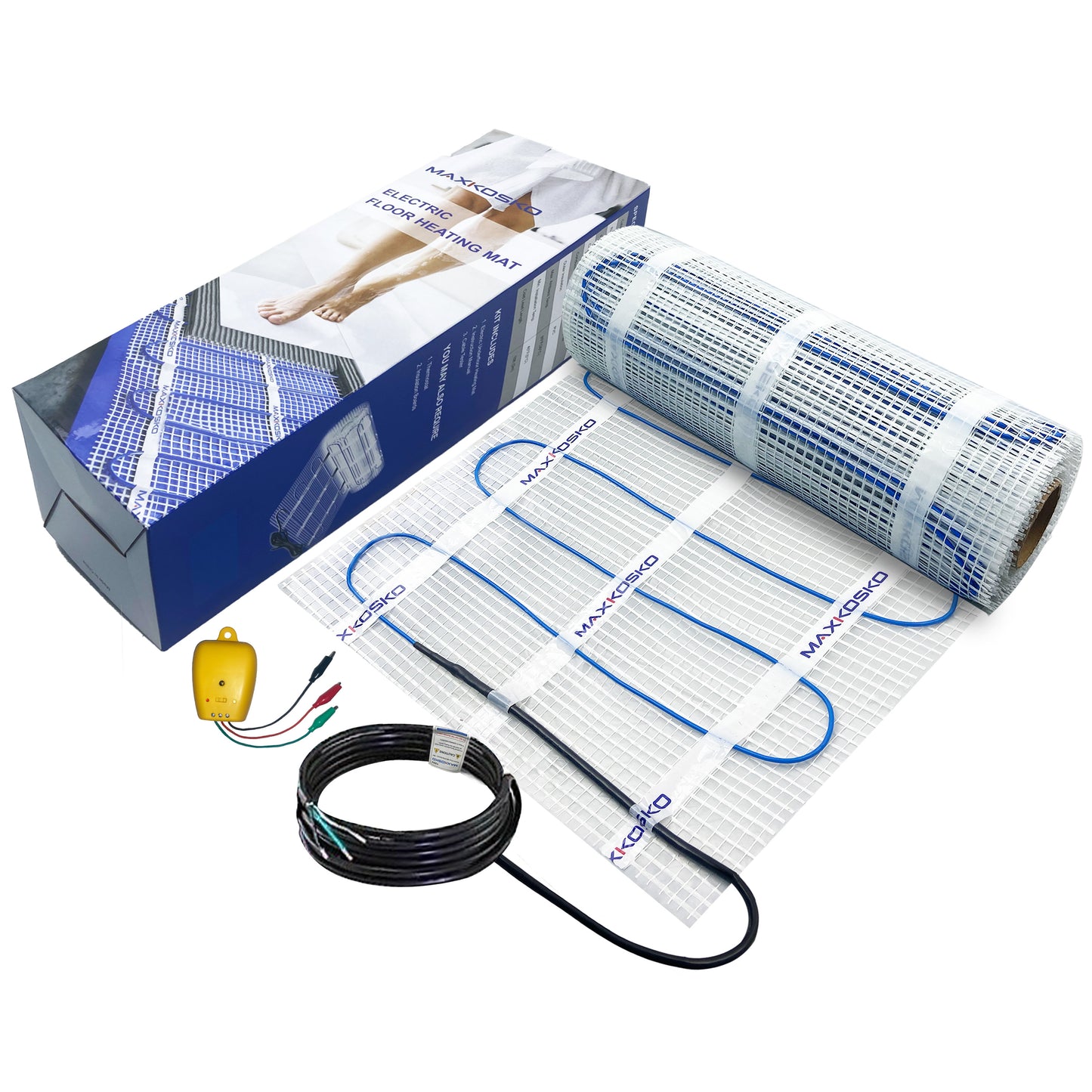

Installation Alarm Included
The alarm monitor helps identify cable damage or a loose connection while the floor is being installed.
Important Before Ordering
Select the Correct Mat Size and Package
120V System: This product is designed for a compatible 110–120V electrical circuit. Confirm the available supply voltage before ordering.

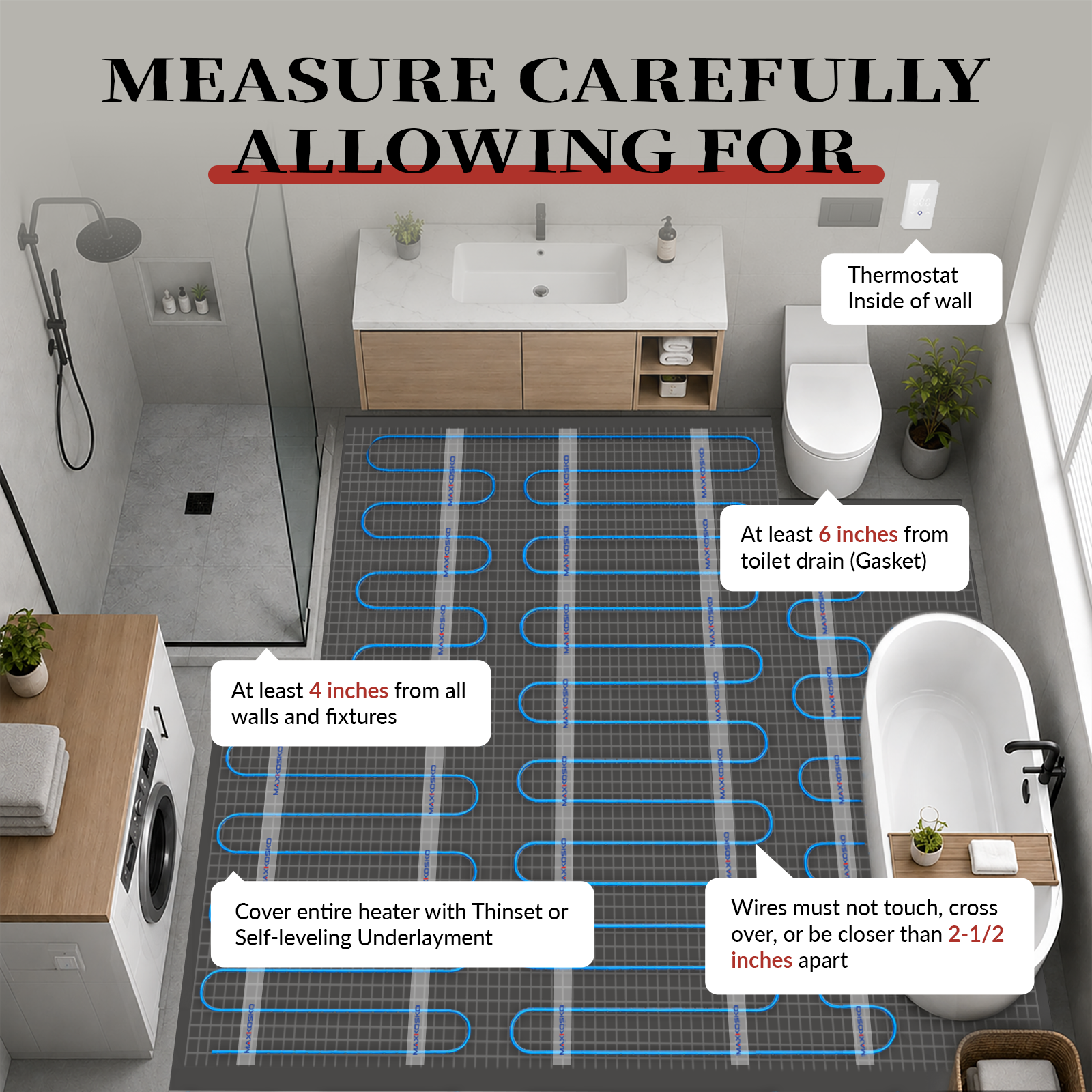

Measure Net Heated Area: Exclude toilets, cabinets, vanities, tubs, appliances, and other permanent fixtures from the heating calculation.
Choose a Mat No Larger Than the Heated Area: Select a mat equal to or slightly smaller than the open floor area. The heating cable cannot be shortened to fit.
Mesh Can Be Cut—Cable Cannot: Only cut the fiberglass mesh backing. Never cut, nick, shorten, cross, or overlap the blue heating cable.
Choose the Package Carefully: The Heating Mat Only option does not include a thermostat. The All-in-One Smart Kit includes the compatible WiFi thermostat.
Thermostat and Floor Sensor Required: Every installation requires a compatible electric floor heating thermostat and properly positioned floor sensor.
Ground-Fault Protection Required: The floor heating circuit must include code-compliant grounding and ground-fault protection. Final connection should be completed by a qualified electrician.

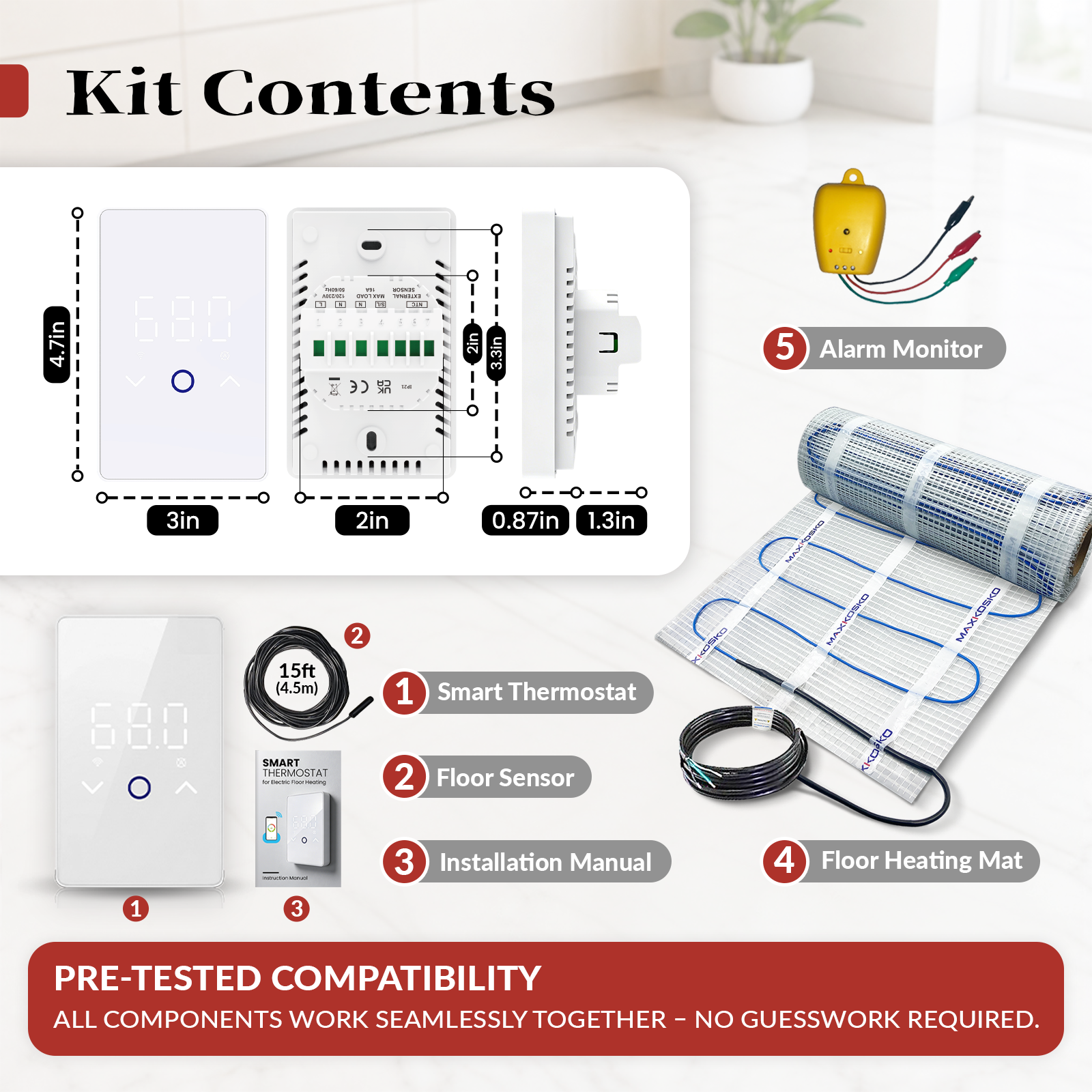

Choose Your Package
| Included Component | Heating Mat Only | All-in-One Smart Kit |
| 120V Electric Floor Heating Mat | Included | Included |
| Touchscreen WiFi Thermostat | Not Included | Included |
| Smart Life App Control | Depends on Your Thermostat | Included |
| Alexa and Google Assistant | Depends on Your Thermostat | Supported |
| Floor Temperature Sensor | Included | Included |
| Installation Alarm Monitor | Included | Included |
| Best For | Existing Compatible Thermostat or Custom Control Setup | New Installation Requiring a Complete Smart Control Package |
Heating Mat Only Requires a Separate Thermostat
Before selecting the Heating Mat Only option, confirm that your thermostat supports a 120V resistive electric floor heating load, the total system amperage, and the supplied floor sensor.
Specifications
| Product Type | Pre-Spaced Electric Floor Heating Mat |
| Rated Voltage | 110–120V AC |
| Heat Output | Approximately 12W per Square Foot |
| Cable Construction | Twin-Conductor Constant-Wattage Heating Cable |
| Approximate Cable Diameter | 1/8–1/6 in (3.2–4.2 mm) |
| Mat Backing | Self-Adhesive Fiberglass Mesh |
| Cold Lead | 10 ft, 2-Wire 16 AWG Plus Ground |
| Floor Sensor | 10K NTC Floor Sensor with 10 ft Lead |
| Available Packages | Heating Mat Only or All-in-One Smart Kit |
| Smart Kit Thermostat Maximum Load | 15A / 1800W at 120V |
| Minimum Installation Temperature | 40°F (5°C) |
| Primary Application | Indoor Electric Radiant Floor Heating |
| Heating Cable Modification | Heating Cable Cannot Be Cut, Shortened, Crossed, or Spliced |
Heating Mat or Loose Heating Cable?
Choose the Heating Mat
Best for open rectangular areas where fast layout and factory-controlled cable spacing are priorities.
Choose Loose Heating Cable
Best for irregular rooms, curved areas, narrow zones, and layouts with many permanent obstacles.
Need more layout flexibility? View the MAXKOSKO Electric Floor Heating Cable.
All-in-One Smart Kit Features View Features Hide Features

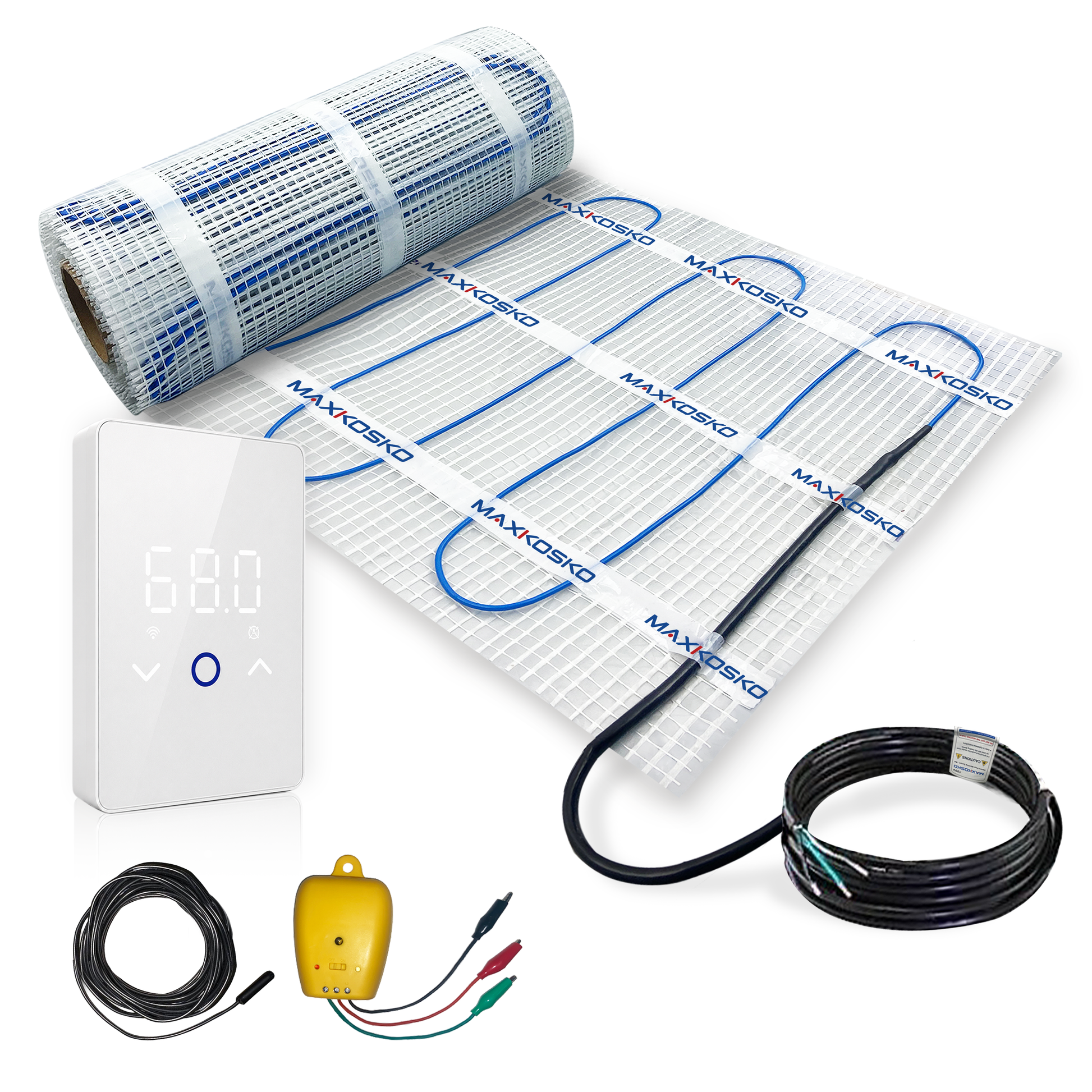

The All-in-One Smart Kit includes a compatible touchscreen WiFi thermostat for remote and programmable floor heating control.
Smart Life App
Adjust the floor heating temperature and operating schedule from a compatible smartphone.
Voice Control
Supports compatible Amazon Alexa and Google Assistant voice commands.
Programmable Schedule
Create daily heating periods that match your household routine and reduce unnecessary runtime.
Floor Temperature Control
The supplied sensor helps monitor floor temperature and supports more consistent heating performance.
Basic Installation Requirements View Requirements Hide Requirements
- Plan the heated floor area and select the correct mat size before installation.
- Test and record the mat resistance before, during, and after installation.
- Install the floor sensor between two heating cable runs without touching the cable.
- Cut only the mesh backing when turning or redirecting the mat.
- Keep the heating cable spacing unchanged and prevent crossing or overlapping.

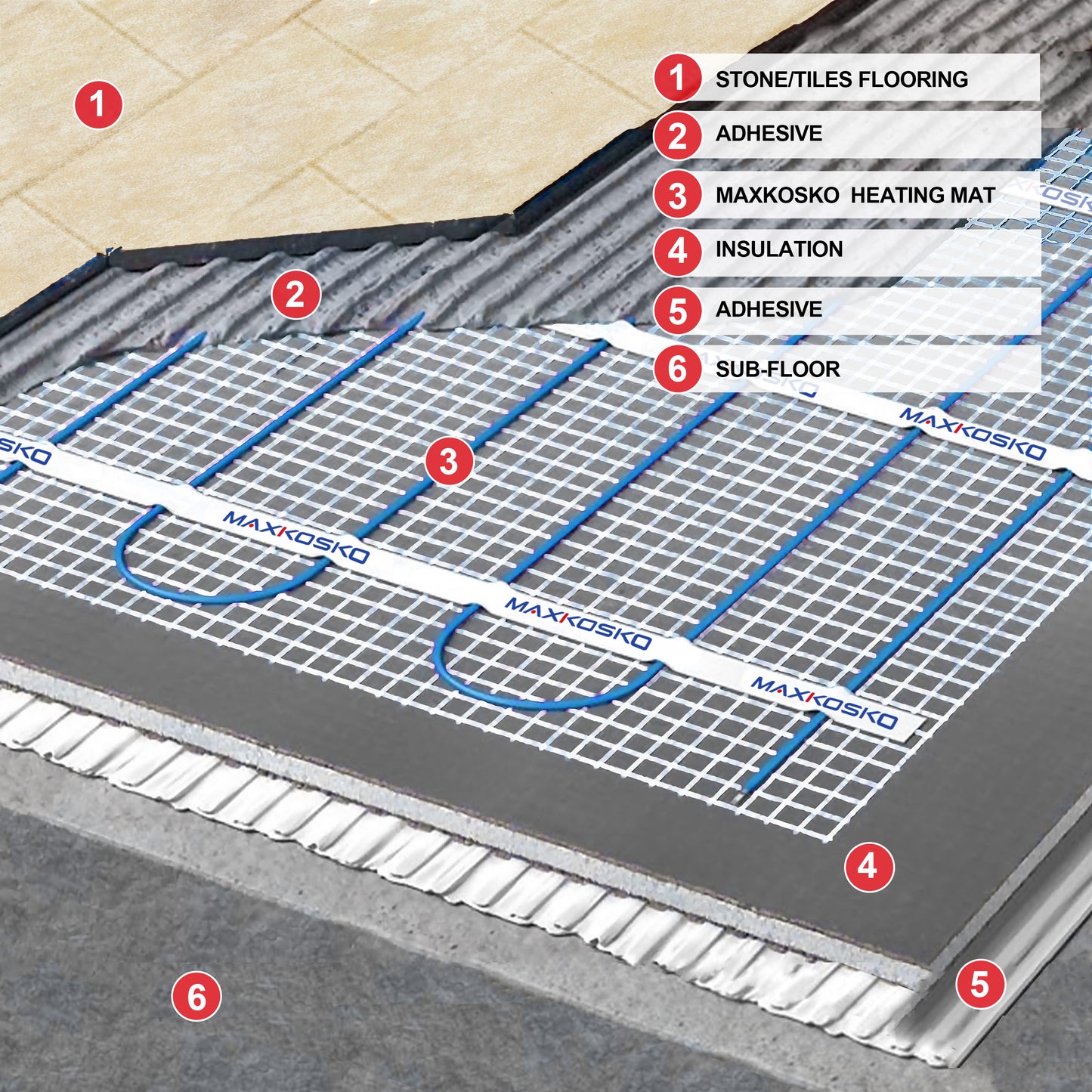

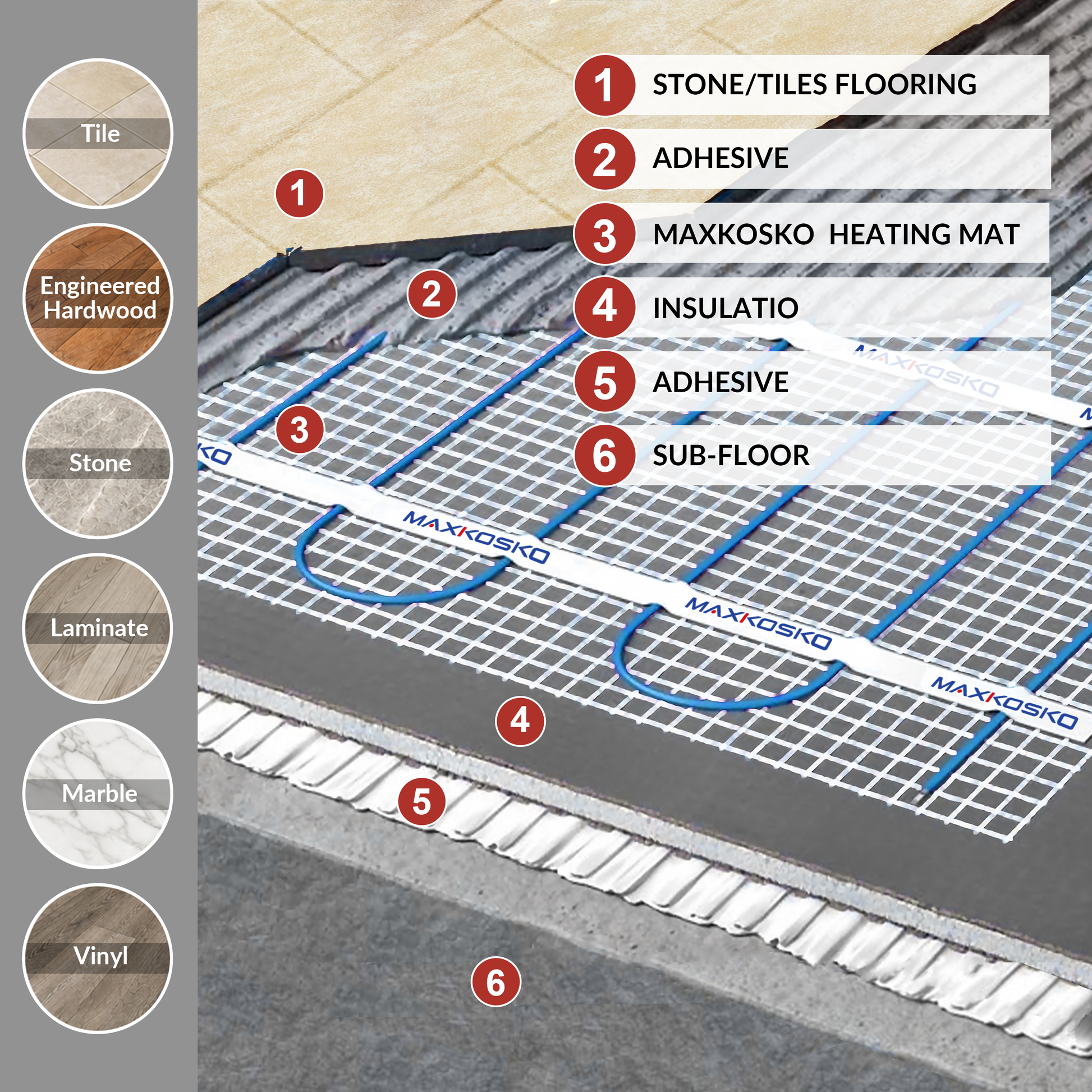

- Embed the complete heating mat in suitable thin-set, mortar, concrete, or another approved material.
- Do not install beneath permanent fixtures or in walls, ceilings, cabinets, or stairs.
- Do not energize the heating system until the mortar and flooring have fully cured.
- Follow the full installation manual, flooring manufacturer instructions, and local electrical codes.
Use the Installation Alarm Throughout the Project
Connect the alarm monitor before floor installation begins and leave it active during the main installation stages.
The alarm can help indicate cable damage or loose connections, but it does not replace the required resistance and insulation tests.
Compatible Flooring Applications
Electric floor heating mats are commonly installed beneath tile and stone. Other floor coverings may also be suitable when approved by the flooring manufacturer and installed according to the required temperature and thermal resistance limits.
- Ceramic and porcelain tile
- Natural stone flooring
- Approved luxury vinyl flooring
- Approved laminate flooring
- Approved engineered wood flooring
- Bathrooms, kitchens, entryways, basements, and renovation projects
Check Flooring Requirements
Wood, vinyl, laminate, and similar flooring products may require special installation methods, maximum floor temperature settings, or additional approval from the flooring manufacturer.
Frequently Asked Questions
What is the difference between Heating Mat Only and the Smart Kit?
Both options include the 120V heating mat, floor sensor, and installation alarm monitor. The All-in-One Smart Kit also includes the compatible touchscreen WiFi thermostat.
Can I cut the mat to fit the room?
You may cut and turn the fiberglass mesh backing, but you must never cut, shorten, nick, cross, or overlap the heating cable attached to the mesh.
How should I choose the correct mat size?
Measure only the open floor area where the mat will be installed. Choose a mat that is equal to or slightly smaller than the net heated area.
Can the mat be installed beneath a vanity or toilet?
No. Do not install the heating mat beneath permanent fixtures, cabinets, toilets, tubs, fixed appliances, or other objects that prevent heat from dissipating.
Does the Heating Mat Only option include a thermostat?
No. A compatible 120V electric floor heating thermostat must be purchased or supplied separately.
What can the Smart Kit thermostat control?
The included thermostat supports touchscreen operation, Smart Life app control, compatible voice assistants, heating schedules, and floor temperature sensing.
Does the installation alarm replace resistance testing?
No. The alarm provides additional monitoring during installation, but resistance and insulation tests must still be completed and recorded throughout the project.
Can this heating mat be used under wood, vinyl, or laminate flooring?
It may be compatible when specifically approved by the flooring manufacturer. Follow all maximum temperature, underlayment, embedding, and installation requirements for the selected floor covering.
Who should make the final electrical connection?
The final thermostat, ground, circuit protection, and power supply connections should be completed by a qualified electrician according to local electrical codes.
Guides & Resources
Confirm Your Project Requirements Before Ordering
- Measure the net open floor area.
- Choose a mat no larger than the available heated area.
- Confirm the electrical circuit is 110–120V.
- Choose Heating Mat Only or the All-in-One Smart Kit.
- Confirm thermostat load capacity when combining multiple mats.
- Verify flooring compatibility and ground-fault protection.
- Review the complete installation manual before beginning work.
Questions & Answers
Have a Question?
-
Can more than 1 kit be hooked together? If yes what is the max amount?
-
Is this project rated for use in Canada?
Yes!
-
How do you ensure the mat is flat and will stay secured when laying directly onto concrete ? Is an adhesive required?
When installing a floor heating mat directly onto concrete, ensuring that it stays flat and secure is crucial for optimal performance. Here are some steps to achieve this:
1. Surface Preparation:
- Ensure that the concrete surface is clean, dry, and free of any debris, dust, or irregularities.
- If there are any cracks or uneven areas, consider patching or leveling the surface.
2. Adhesive Usage:
- While it's not always necessary to use adhesive, some installers prefer to use thin-set mortar or a specialized adhesive designed for floor heating mats.
- Adhesive can help to secure the mat to the floor and provide a flat surface.
3. Sticky Tape:
- This floor heating mats come with sticky tape on the back. This tape can be used to secure the mat to the floor temporarily during installation. -
I have 2 rooms totalling 150 sq ft that I would like to operate as one controllable area. Can I order 3x 50 sq ft kits and connect them ? Or 1x 100 sq ft + 1x 50 sq ft kit? Also, can these be hooked up to 220 service or are they 110 service only ?
I recommend going with 1x 100 sq ft kit and 1x 50 sq ft kit, then connecting both kits to your thermostat for control.
Please note that you'll need to purchase a thermostat specifically designed for electric floor heating.
Typically, such thermostats come with a floor sensor to ensure accurate temperature control.
Regarding the power supply, our mat kits are suitable for 110V-120V only. -
Can I use this directly on mahogany or popular underlayment?
In many cases, floor heating mats are designed to be installed on a suitable substrate, such as cement backer board or an membrane, to ensure efficient and safe operation.
