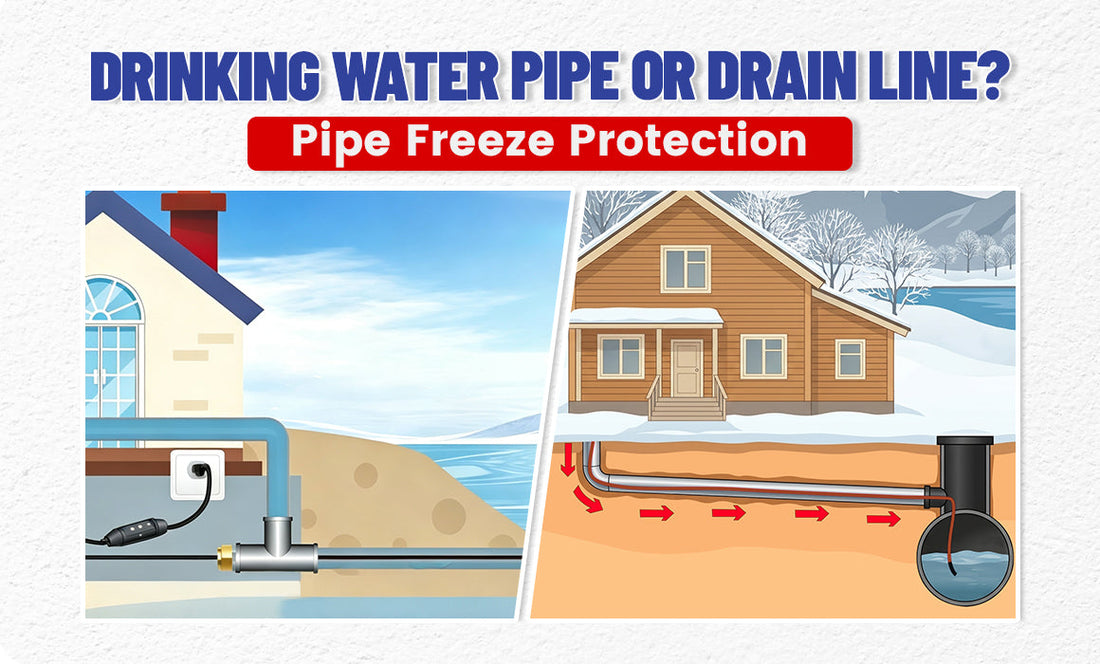

If you are choosing an in-pipe heating cable for drinking water vs drain lines, start with the pipe application—not cable length or wattage. A pressurized potable-water supply line has different requirements from a sewer, sump, condensate, or wastewater drain. After identifying what the pipe carries, verify pressure, pipe size, internal clearance, entry fitting, cable route, voltage, and the instructions for the exact product.
Start With What the Pipe Carries
In-pipe heating cable sits directly inside the plumbing. That makes the intended fluid and pipe system one of the most important product-selection factors.
Pressurized Drinking Water
If the pipe carries potable household water, choose a cable specifically designed for compatible pressurized drinking-water systems. Verify its pressure rating, potable-water suitability, entry fitting, pipe clearance, voltage, and installation requirements.
Sewer, Wastewater or Condensate
If the pipe carries non-potable drainage flow, choose a drain-specific product that matches the pipe size, pressure condition, wastewater type, internal route, and required heating output.
Do Not Treat the Two Categories as Interchangeable
A heating cable designed for a non-potable drain application should not be installed inside a drinking-water pipe unless that exact product is specifically approved for the potable-water application, pressure, pipe configuration, and installation method.
Incoming Water vs Outgoing Water Is a Useful First Filter
A simple way to begin is to ask where the water is going.
If the pipe brings potable household water into the home, cabin, well system, or seasonal property, start with the drinking-water category.
If the pipe carries wastewater, sump discharge, condensate, sewage, or another non-potable drainage flow away from the building, start with the sewer and drain category.
This Is Only the First Step
Do not make the final selection from flow direction alone. After identifying the application, you still need to check pipe pressure, internal diameter, bends, fittings, entry point, heating length, voltage, and the specifications of the exact cable.
Drinking Water vs Drain In-Pipe Heating Cable
| Selection Factor | Drinking-Water In-Pipe Cable | Sewer & Drain In-Pipe Cable |
|---|---|---|
| Primary application | Compatible potable-water supply pipes | Non-potable sewer, septic, sump, condensate, wastewater, and drain applications, depending on the exact model |
| Typical pipe condition | Pressurized water-supply system | Usually open, vented, non-pressurized, or low-pressure drainage, depending on the model |
| Water contact | Direct contact with potable household water | Direct contact with wastewater or drainage flow |
| Pressure rating | Must match the supply pressure; current MAXKOSKO potable-water models discussed here are rated up to 230 PSI | Model-specific; current dedicated drain products are intended for non-pressurized or low-pressure applications rather than pressurized drinking-water systems |
| Pipe size | Verify the complete internal route; current MAXKOSKO potable-water models are intended for compatible pipes 3/4 in and larger | Depends on model: current compact drain cable is aimed mainly at smaller drains, while the heavy-duty sewer model is aimed mainly at larger pipes |
| Entry point | Requires a pressure-tight cable entry arrangement specified for the selected model | May use a cleanout, open pipe end, drain outlet, or other compatible access point, depending on the product |
| Potable-water use | Yes, only when the exact product is designed and installed for that application | No for the dedicated non-potable drain products discussed here |
When to Choose In-Pipe Heating Cable for Drinking Water
A drinking-water in-pipe cable can be considered when a compatible potable-water line is difficult or impractical to protect from the outside.
Examples may include:
- Well-to-house water supply lines
- Cabin drinking-water lines
- Seasonal-home water systems
- Buried potable-water pipes
- Rural and farm water-supply lines
- Other hard-to-access pressurized potable-water pipes
For these applications, do not select a cable simply because its physical size fits inside the pipe. Potable-water suitability and pressure resistance must be verified for the exact model.
Current MAXKOSKO Standard Drinking-Water Model
The current MAXKOSKO standard in-pipe drinking-water cable is designed for compatible pressurized potable-water lines and is rated for water pressure up to 230 PSI.
Important installation details include:
- A potable-water-compatible fluoropolymer outer jacket
- 120V or 240V options depending on the selected variant
- Recommended use in compatible pipes 3/4 in and larger
- A minimum internal opening of 17 mm / 0.67 in throughout the complete cable route
- A pre-installed 3/4 in NPT cable entry fitting
- A compatible T-fitting that must be purchased separately
- A fixed heating length that should not be cut, shortened, or spliced
Do not force the cable through sharp elbows, narrow fittings, collapsed sections, blockages, or unknown internal routes.
When the Drinking-Water Y-Fitting Version May Be Easier
MAXKOSKO also offers a drinking-water model with an integrated brass Y-fitting. The Y-fitting creates an approximately 45° cable entry path, which can simplify the entry arrangement compared with sourcing a separate T-fitting for the standard model.
For this specific Y-fitting model, the current product specifications include:
- Pressurized potable-water pipe freeze protection
- Maximum water pressure of 230 PSI
- 120V AC operation
- Compatible pipes 3/4 in and larger
- Potable-water-compatible fluoropolymer outer jacket
- Integrated brass Y-fitting
- Built-in GFCI plug
- CSA and NSF/ANSI 61 certification
Certification Claims Are Model-Specific
Do not assume that every in-pipe heating cable carries the same certification simply because it belongs to the same broad product category. Check the current specifications and documentation for the exact model being installed.
Drain Cable Selection Depends on the Drain
“Sewer and drain line” covers several very different plumbing conditions. A large septic or sump line is not the same application as a small furnace condensate drain.
MAXKOSKO currently separates these applications into different drain-focused cable options.
5W Sewer & Wastewater Cable
Designed for compatible non-pressurized or low-pressure sewer, septic, sump discharge, wastewater, and larger drain pipes. It is primarily aimed at pipes approximately 2 in and larger and is not intended for drinking-water systems.
3W Condensate & Small Drain Cable
Designed mainly for compatible open, vented, or low-pressure condensate and smaller drainage lines. It is primarily aimed at smaller drain pipes and is not intended for pressurized potable-water plumbing.
When to Consider the 5W Heavy-Duty Sewer Cable
The current MAXKOSKO 5W heavy-duty in-pipe model is designed for larger and more demanding non-potable wastewater applications.
Examples include:
- Non-pressurized sewer lines
- Septic-system outlets
- Larger waste drain pipes
- Sump pump discharge lines
- Underground wastewater drains
- Rural or agricultural drainage systems
This specific model is intended for non-pressurized or low-pressure drainage, is primarily recommended for pipes approximately 2 in and larger, and uses approximately 5W/ft output at 10°C (50°F).
Not for Drinking-Water Supply Pipes
The heavy-duty sewer model should not be installed inside potable-water pipes, household drinking-water systems, wells, or other pressurized drinking-water supply lines.
When to Consider the 3W Compact Drain Cable
A smaller drain or condensate line may not need the same cable as a large sewer pipe.
The current MAXKOSKO compact drain model is intended mainly for compatible:
- HVAC condensate drains
- High-efficiency furnace condensate pipes
- Freezer or refrigeration condensate lines
- Small open drains
- Gray-water discharge lines
- Low-pressure wastewater drains
- Small outdoor drainage systems
This model uses approximately 3W/ft output at 10°C (50°F), is intended primarily for open, vented, or low-pressure drainage systems, and is generally better suited to compatible smaller drain lines rather than large heavy-wastewater pipes.
It should not be installed in sealed pressurized plumbing or potable-water supply systems.
The Pipe Route Matters as Much as the Pipe Type
Even after choosing the correct drinking-water or drain category, an in-pipe cable still has to physically travel through the complete pipe route without damaging its outer jacket or end seal.
Before ordering, check:
- The actual internal diameter of the pipe
- The internal opening through every fitting and adapter
- Sharp 90° or 45° elbows
- Tight traps or restricted fittings
- Valves or internal components that reduce clearance
- Existing blockages, roots, debris, or collapsed pipe
- The location of the intended cable entry point
- The complete freeze-prone heating length
Never Force an In-Pipe Heating Cable
Do not hammer, twist, aggressively push, or otherwise force a cable through a restricted pipe route. Damage to the outer jacket or end seal can lead to leakage or electrical failure. The complete route should be confirmed before installation.
Do Not Use In-Pipe Cable to Push Through an Existing Blockage
In-pipe heating cable is primarily a freeze-prevention solution. It should not be treated as a drain snake or a tool for forcing through an existing frozen, clogged, collapsed, or unknown pipe section.
Before installation:
- Clear conventional drain blockages.
- Inspect frozen or damaged plumbing.
- Confirm the pipe is not collapsed or crushed.
- Check for sharp restrictions and unsuitable bends.
- Verify that a safe and compatible entry point is available.
If the pipe is leaking or its condition cannot be safely determined, correct the plumbing problem before installing or energizing heating cable.
Do You Actually Need an In-Pipe Cable?
If the freeze-prone pipe is exposed and easy to access from the outside, external heating cable may be simpler to inspect and install.
In-pipe heating is most useful when the relevant pipe section is buried, concealed, difficult to wrap externally, or when an internal application-specific solution is otherwise appropriate.
If you have not yet made that decision, use the external vs in-pipe heating cable guide before selecting an internal cable.
Do You Still Need to Think About Insulation?
Yes. An internal cable only heats the pipe route it protects. Other exposed plumbing components can still lose heat.
Depending on the system, inspect:
- Exposed pipe sections outside the heated route
- Valves and fittings
- Foundation or wall entry points
- Above-ground well plumbing
- Crawl-space sections
- Drain outlets exposed to wind
Any insulation used with the plumbing system should be appropriate for the pipe, environment, heating equipment, and applicable product instructions.
In-Pipe Heating Cable Selection Checklist
- First identify whether the pipe carries potable water or non-potable drainage.
- Confirm whether the system is pressurized, low-pressure, vented, or open.
- Verify the exact product's potable-water suitability before placing it inside a drinking-water pipe.
- Do not apply a 230 PSI rating to drain cables unless the exact product specifies it.
- Choose between heavy-duty and compact drain products based on the actual drainage application and pipe conditions.
- Measure the complete internal route and verify every bend and fitting has adequate clearance.
- Confirm the required entry fitting or access point before ordering.
- Do not cut or modify a fixed-length cable unless the exact product explicitly permits it.
- Do not force an in-pipe cable through sharp elbows, traps, blockages, or unknown routes.
- Check certifications and technical specifications for the exact model rather than assuming they apply to the whole category.
Choose the In-Pipe Cable by the Plumbing Application
For a compatible pressurized household water line, start with MAXKOSKO products designed specifically for potable-water freeze protection. Current options include a standard cable-entry version and a model with an integrated brass Y-fitting.
View Drinking-Water In-Pipe Cables
For non-potable drainage, use the dedicated sewer and drain range. The current lineup includes a higher-output model for larger sewer, septic, sump, and wastewater lines and a compact option for smaller open drains and condensate applications.
View Sewer & Drain In-Pipe Cables
Before ordering either type, confirm the pipe use, pressure, internal diameter, complete cable route, voltage, entry fitting, heating length, and product-specific installation requirements.
Frequently Asked Questions
Can I put heating cable inside a drinking-water pipe?
Yes, but only when the exact heating cable is designed for compatible potable-water systems and the pipe pressure, size, internal route, entry fitting, voltage, and installation all meet the product requirements.
Can sewer or drain heating cable be used in a drinking-water pipe?
Do not use a dedicated non-potable sewer or drain heating cable inside a drinking-water line. Choose a model specifically designed for compatible potable-water applications.
What is the pressure rating of MAXKOSKO drinking-water in-pipe cable?
The current MAXKOSKO standard and Y-fitting drinking-water models discussed in this guide are rated for water pressure up to 230 PSI. That specification should not be applied automatically to other in-pipe cable models.
Which in-pipe heating cable should I use for a sump discharge line?
Use a product designed for the actual non-potable sump or drain application. The current MAXKOSKO 5W heavy-duty drain model is intended for compatible sump discharge and larger low-pressure wastewater lines. Confirm pipe size, pressure, route, and entry conditions before ordering.
Which cable is better for a condensate drain?
For a compatible small open, vented, or low-pressure condensate line, the current MAXKOSKO compact 3W drain cable may be the more appropriate category than the larger 5W heavy-duty sewer model. Verify the exact pipe route and product requirements first.
Does all in-pipe heating cable have the same certification?
No assumption should be made at the category level. Certification is model-specific. For example, the current MAXKOSKO Y-fitting drinking-water model lists CSA and NSF/ANSI 61 certification. Check the current documentation for the exact product being installed.
Can an in-pipe heating cable go through a sharp 90-degree elbow?
Do not force the cable through sharp elbows or restricted fittings. The complete pipe route must provide the clearance and gradual bends required by the specific product.
Can I install an in-pipe cable through a P-trap?
Do not force heating cable through a tight trap or other restricted route. Drain products require a compatible access point and a clear internal path that allows insertion without damaging the cable.
Can I cut an in-pipe heating cable if it is too long?
Not unless the exact product is specifically designed for field modification. The current fixed-length MAXKOSKO in-pipe products discussed here should not be cut, shortened, or spliced.
How do I choose between external and in-pipe heating cable?
External cable may be simpler when the freeze-prone pipe is accessible from the outside. In-pipe cable may be practical when the relevant pipe section is buried, concealed, or difficult to protect externally, provided the internal product matches the exact plumbing application.
